Designing Your Own H-Cord

by j_rhod21 in Workshop > 3D Printing

179 Views, 0 Favorites, 0 Comments

Designing Your Own H-Cord

IMG_3075 (1).jpeg

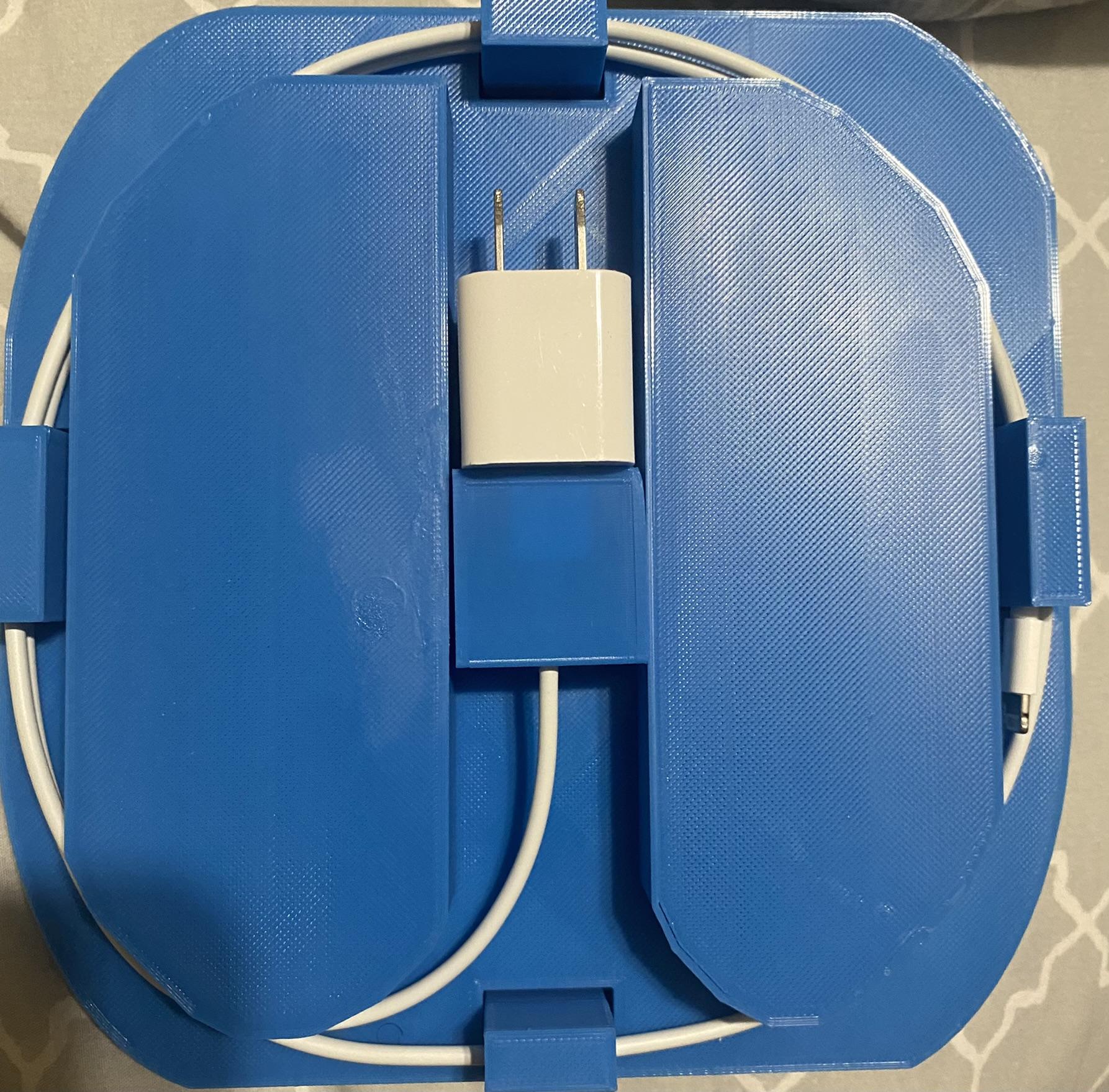

Hello everyone, today we are going to design an H-Cord for the purpose of securely transporting phone chargers.

Supplies:

3d Printer
Computer
Pla Filament
SuperGlue
Nitrile Gloves

AutoCad

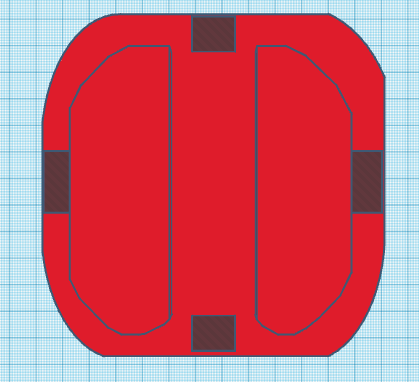

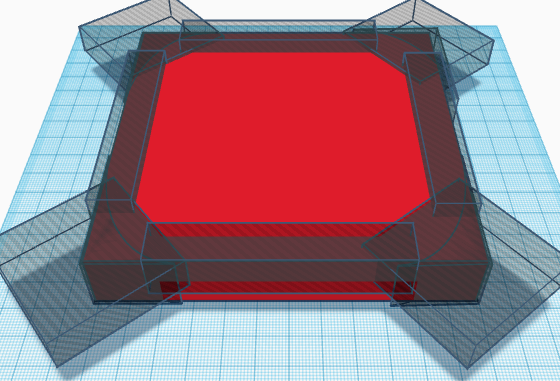

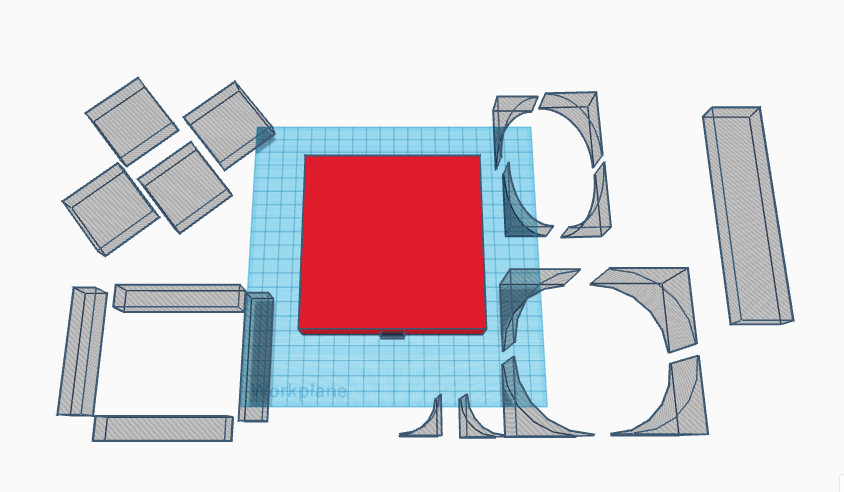

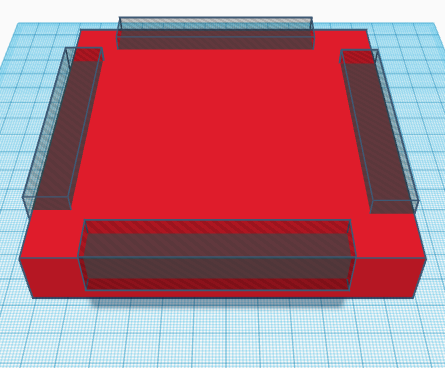

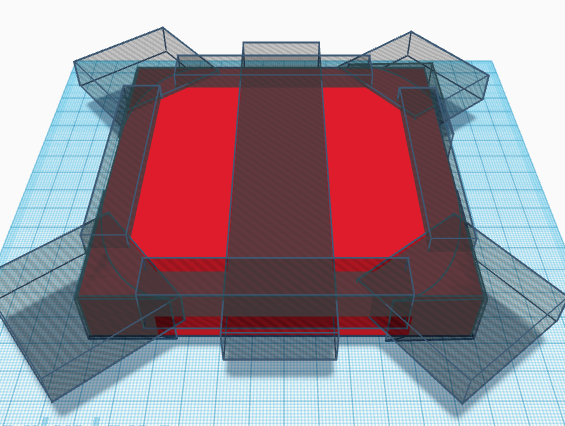

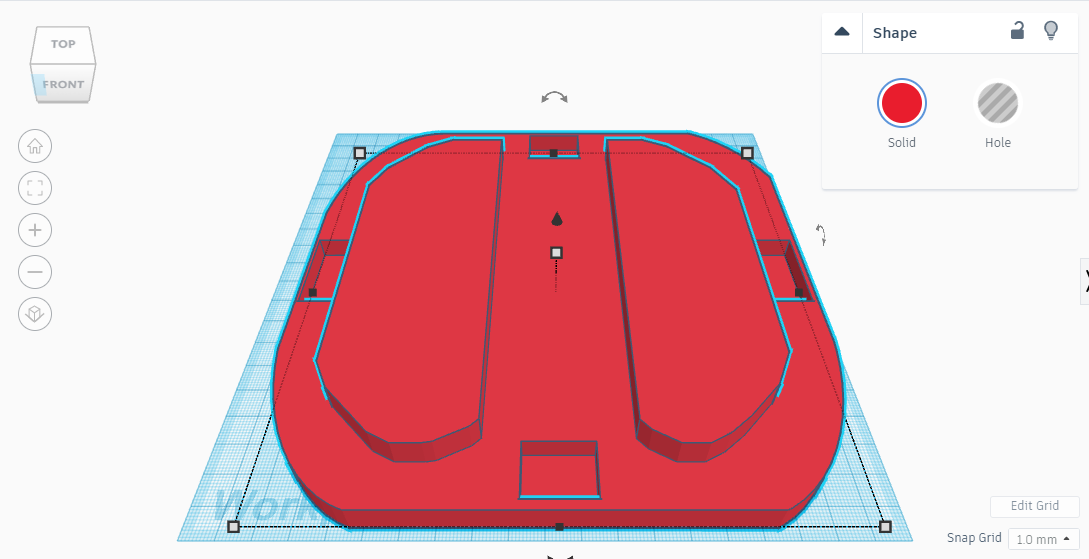

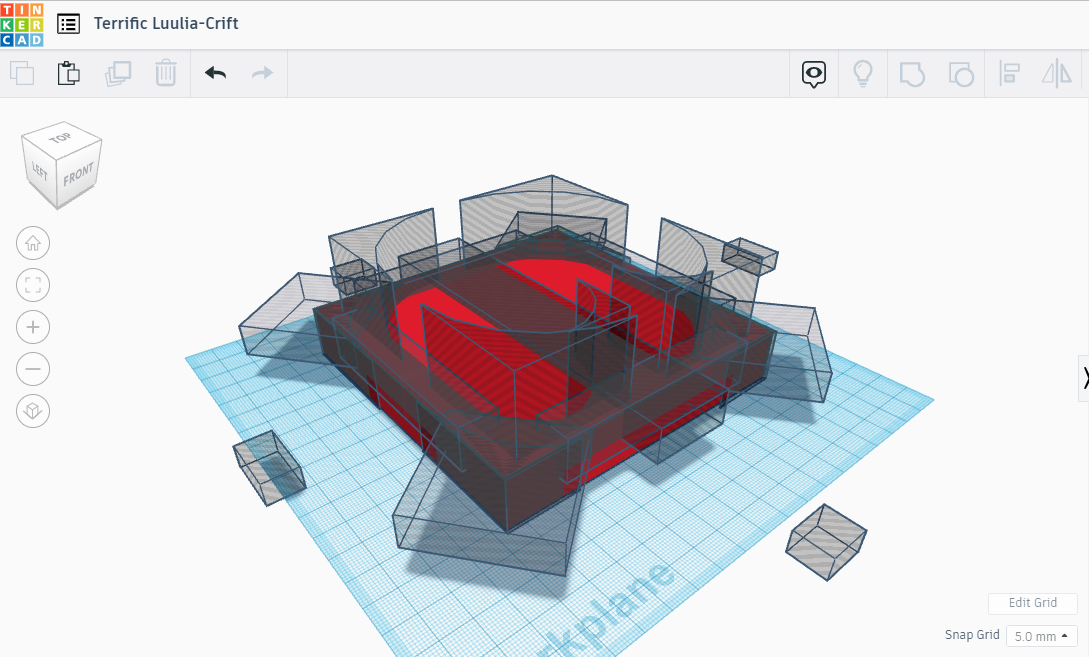

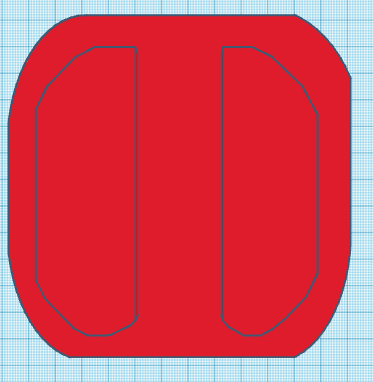

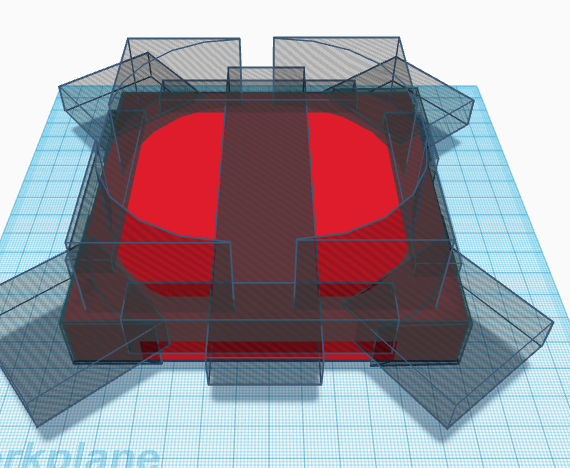

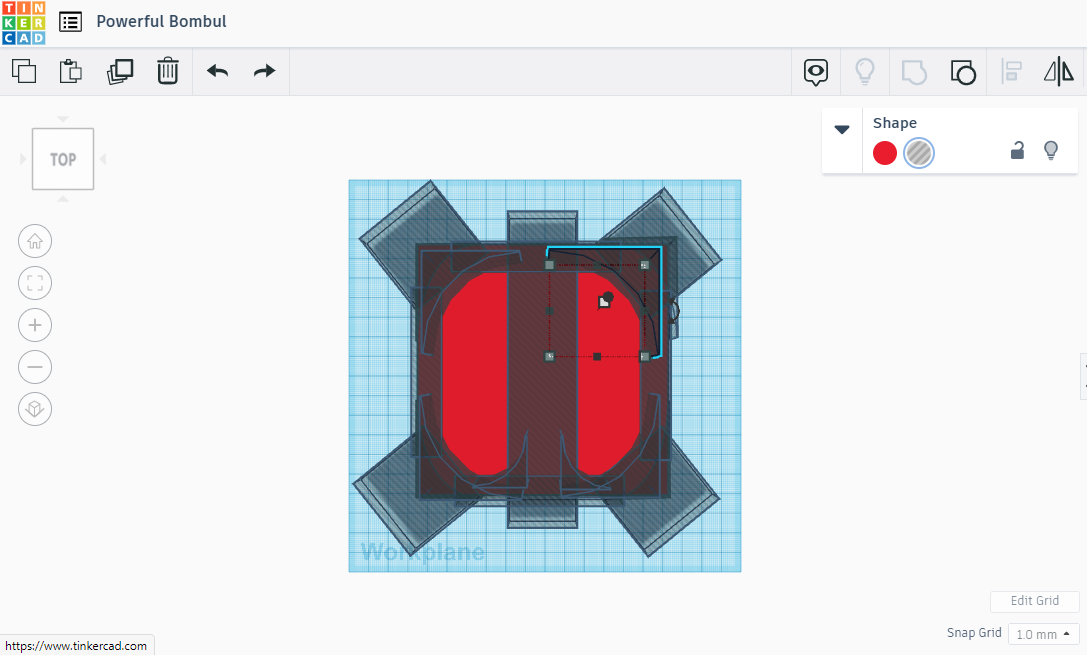

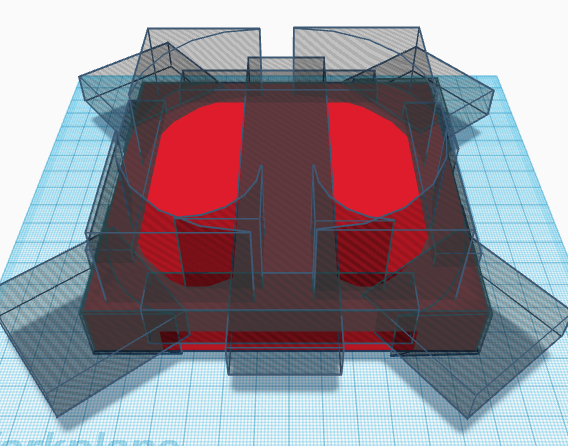

Design the H-Cord with these cuts. (These cuts were made through TinkerCad)

Ultimaker Cura

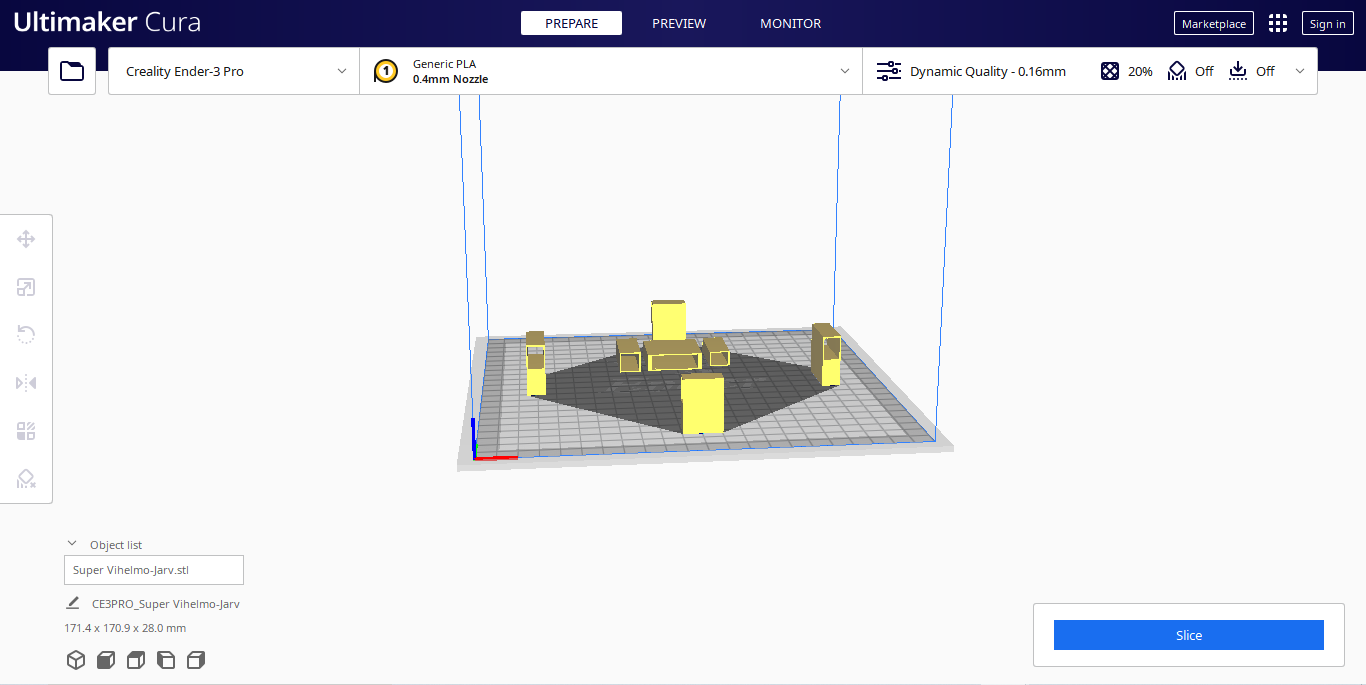

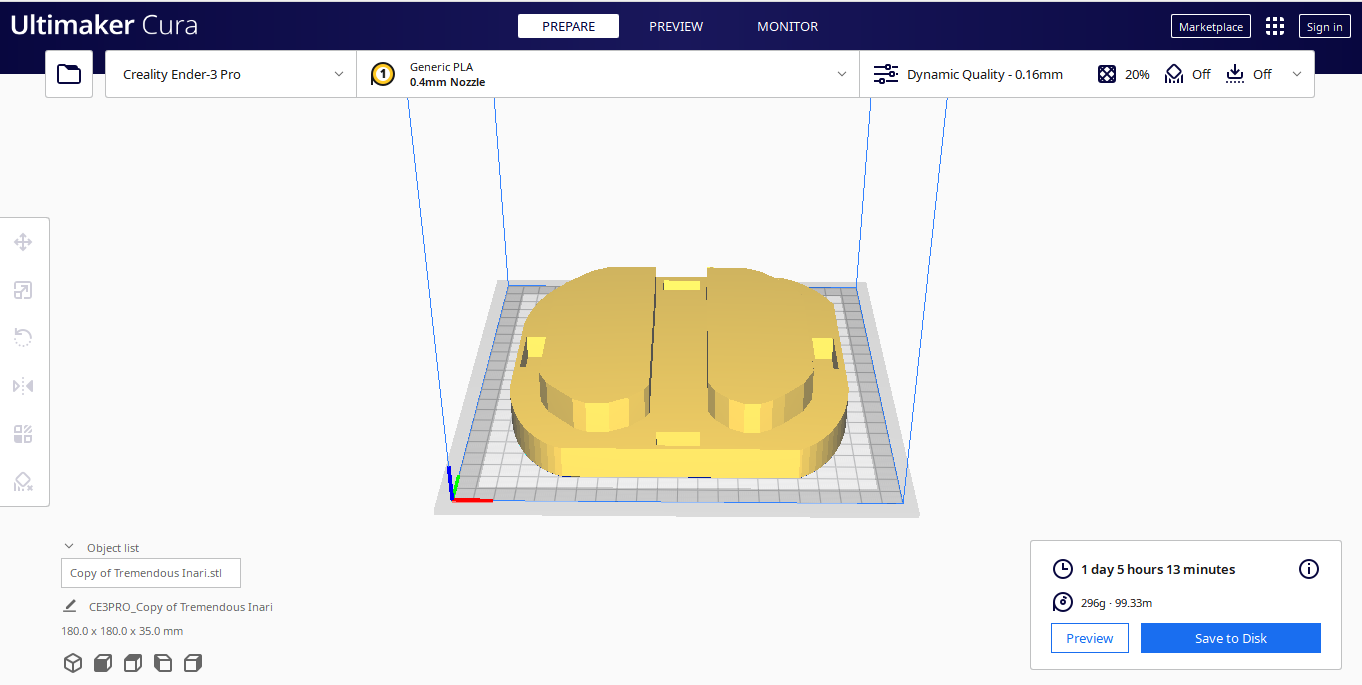

Convert the Tinkercad model into an STL file and send it to Ultimaker Cura to 3dPrint.

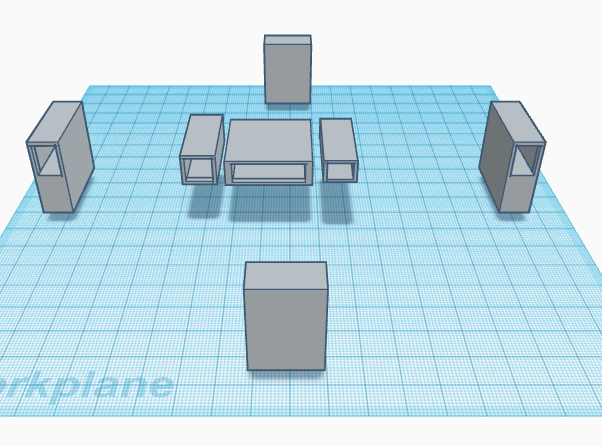

Ultimaker Cura: Print Rectangles



(LengthxWidthxHeight)mm

Left and Right Rectangle Dimensions:

10x30x28

Top and Bottom Rectangle Dimension:

10x20x28

Middle Rectangles:

Left Middle (11.5x30x11)

Middle Middle (29.5x30x9)

Right Middle (11x30x11)

Convert to STL file and print through Ultimaker Cura. (I recommend printing them seperately.)

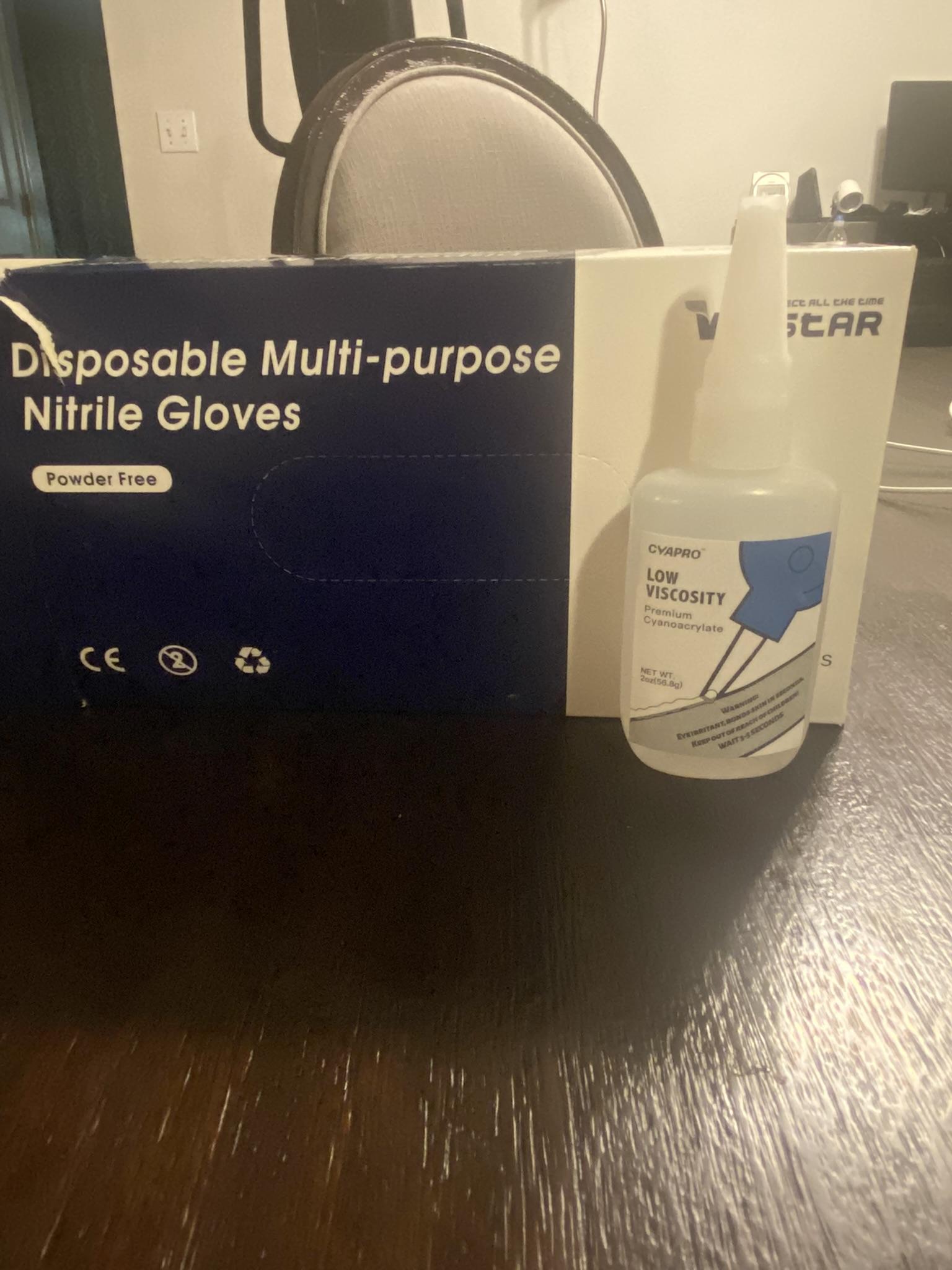

SuperGlue

Use Nitrile Gloves when handling Super Glue!

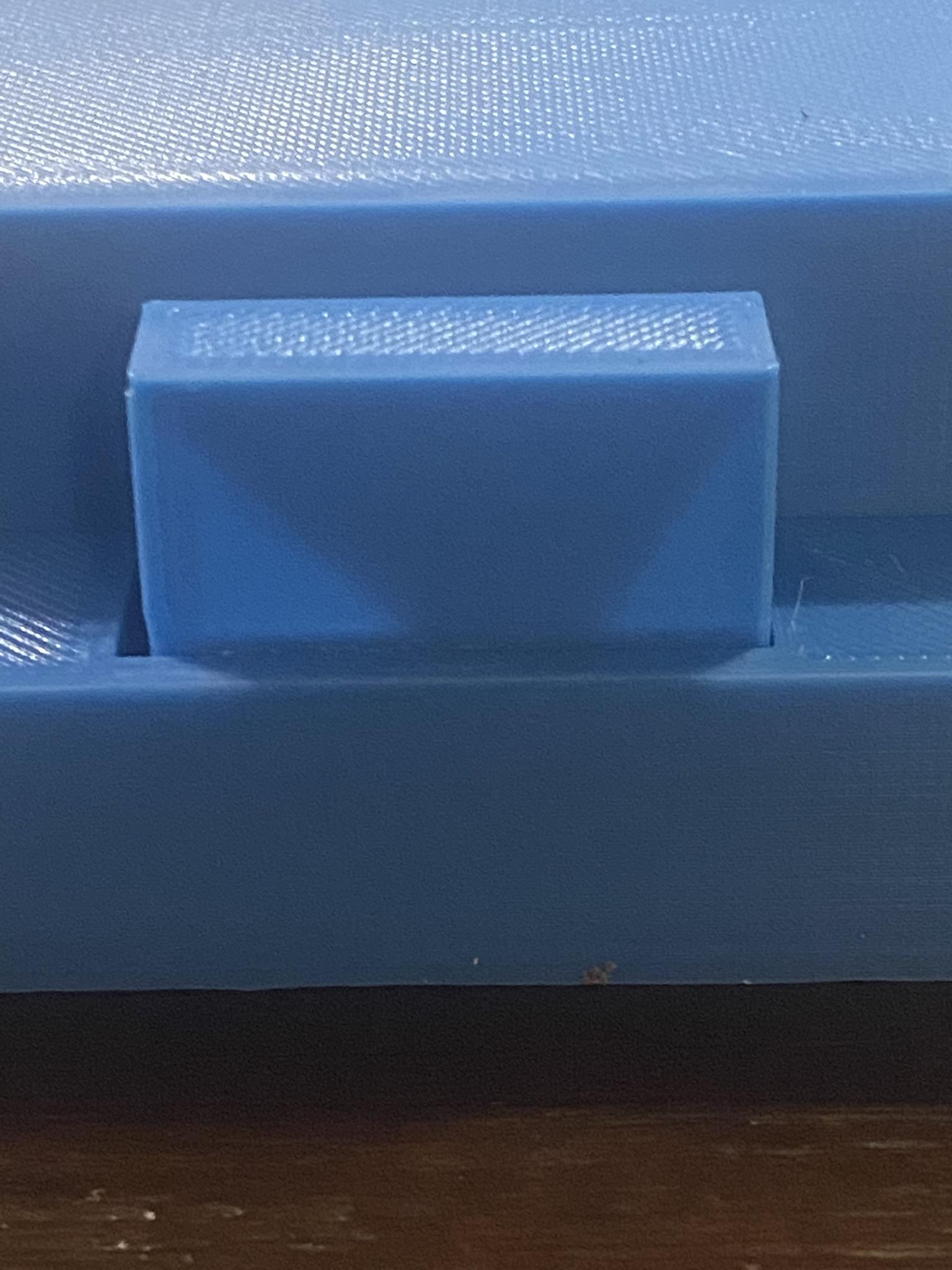

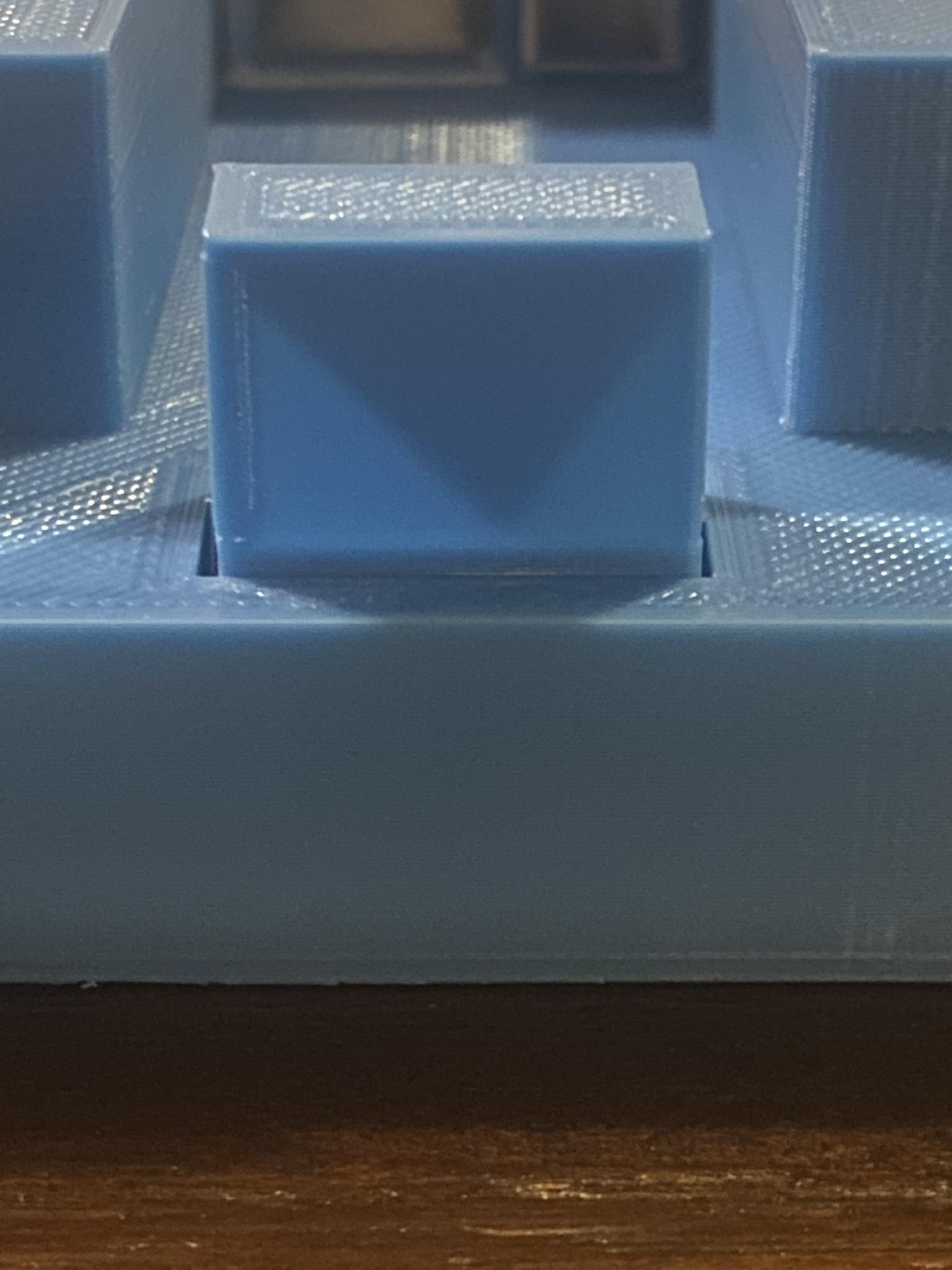

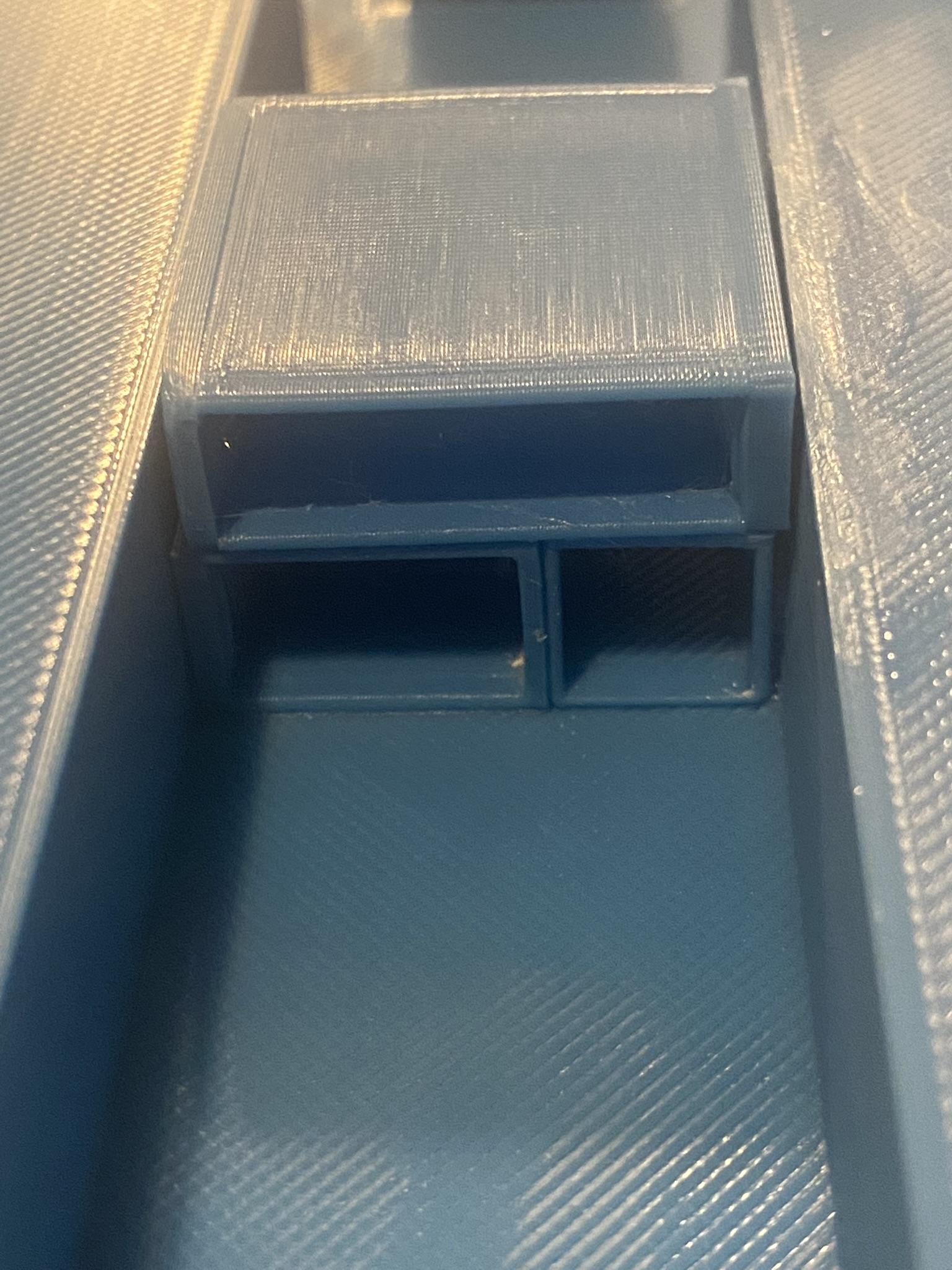

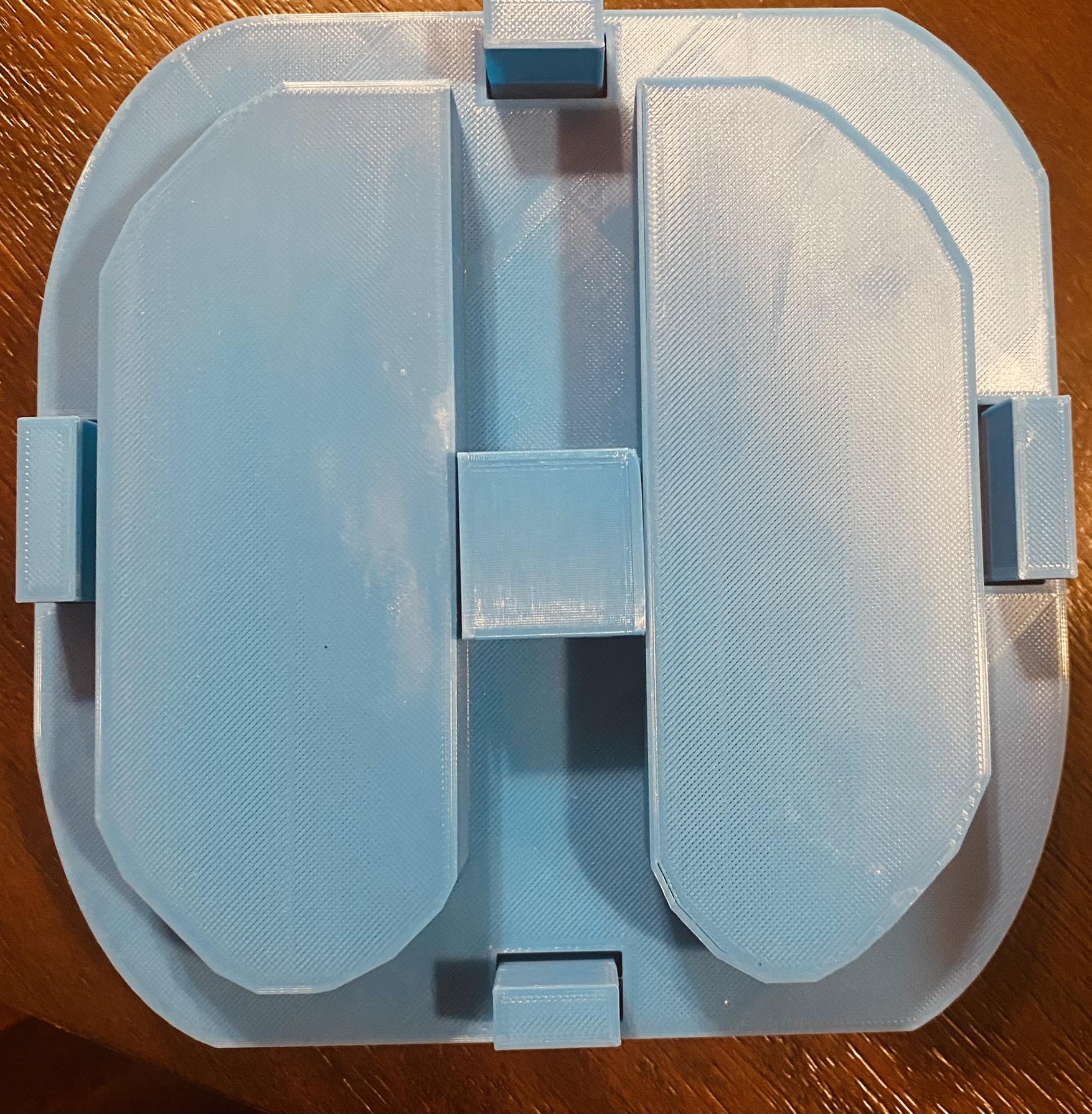

Glue the rectangle pieces in each hole as specified by the pictures.

Enjoy!
