Drill Bit Stand

Hey


I always wanted to arrange my drill bits in a perfect position .

So i decided to build  some practical stand

Enjoy

I don`t like the way it looks now ,  it`s just a box for me , and i want to modify it

I bought 1 long aluminum T angle

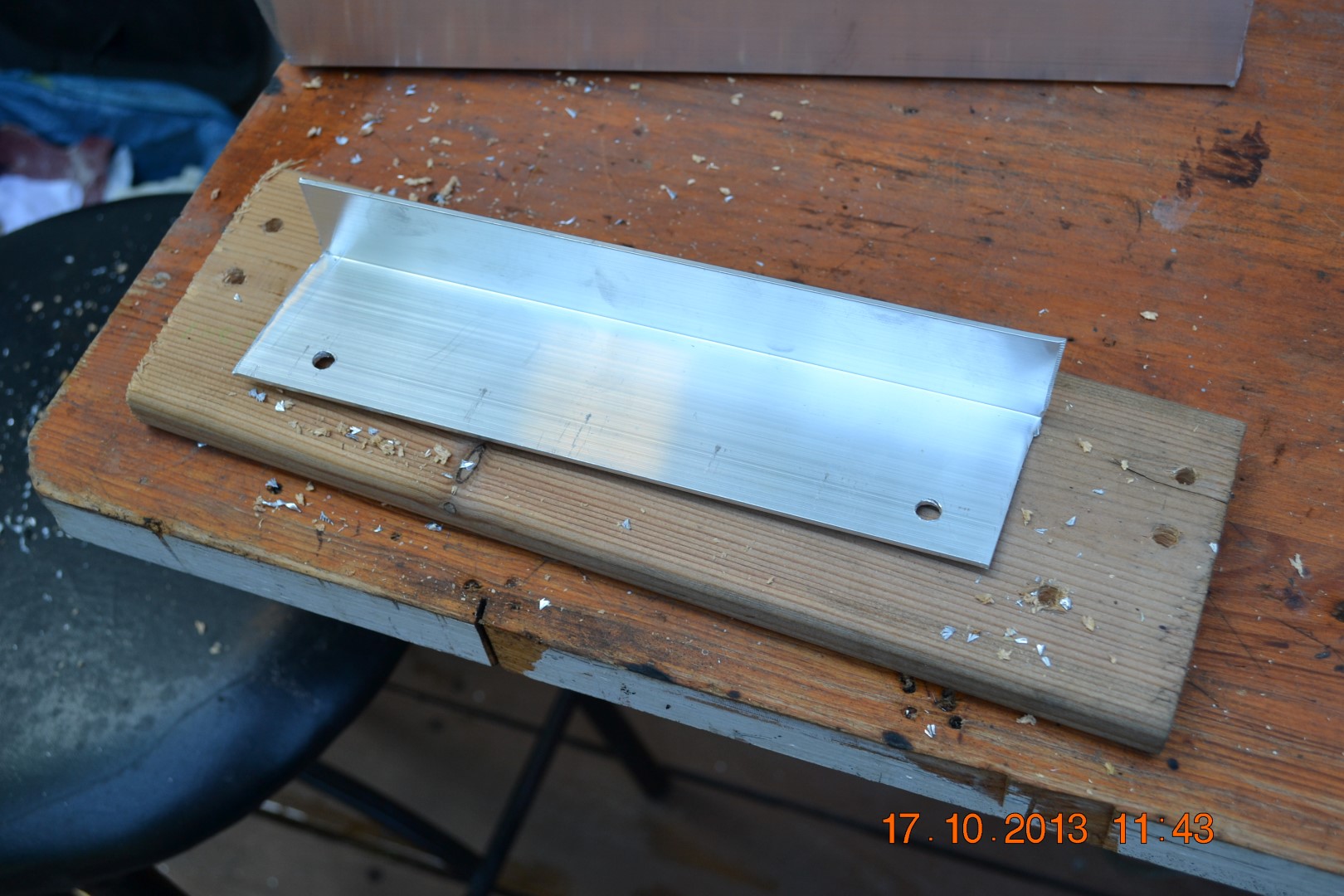

Cut it according to the size of the future to be drill bit set

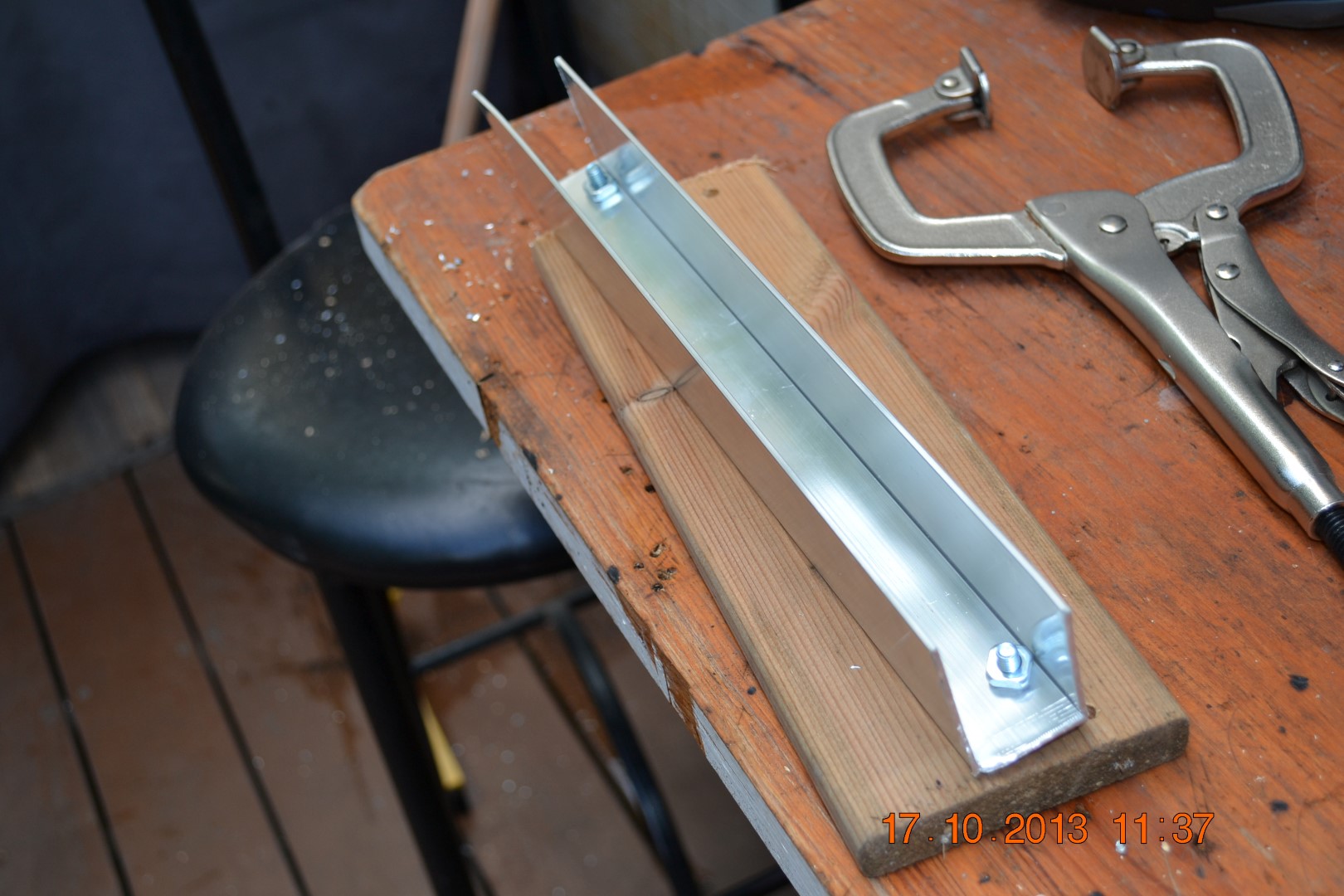

Drill it so the screws could be attached to the other angle

This was definattly the hardest part .

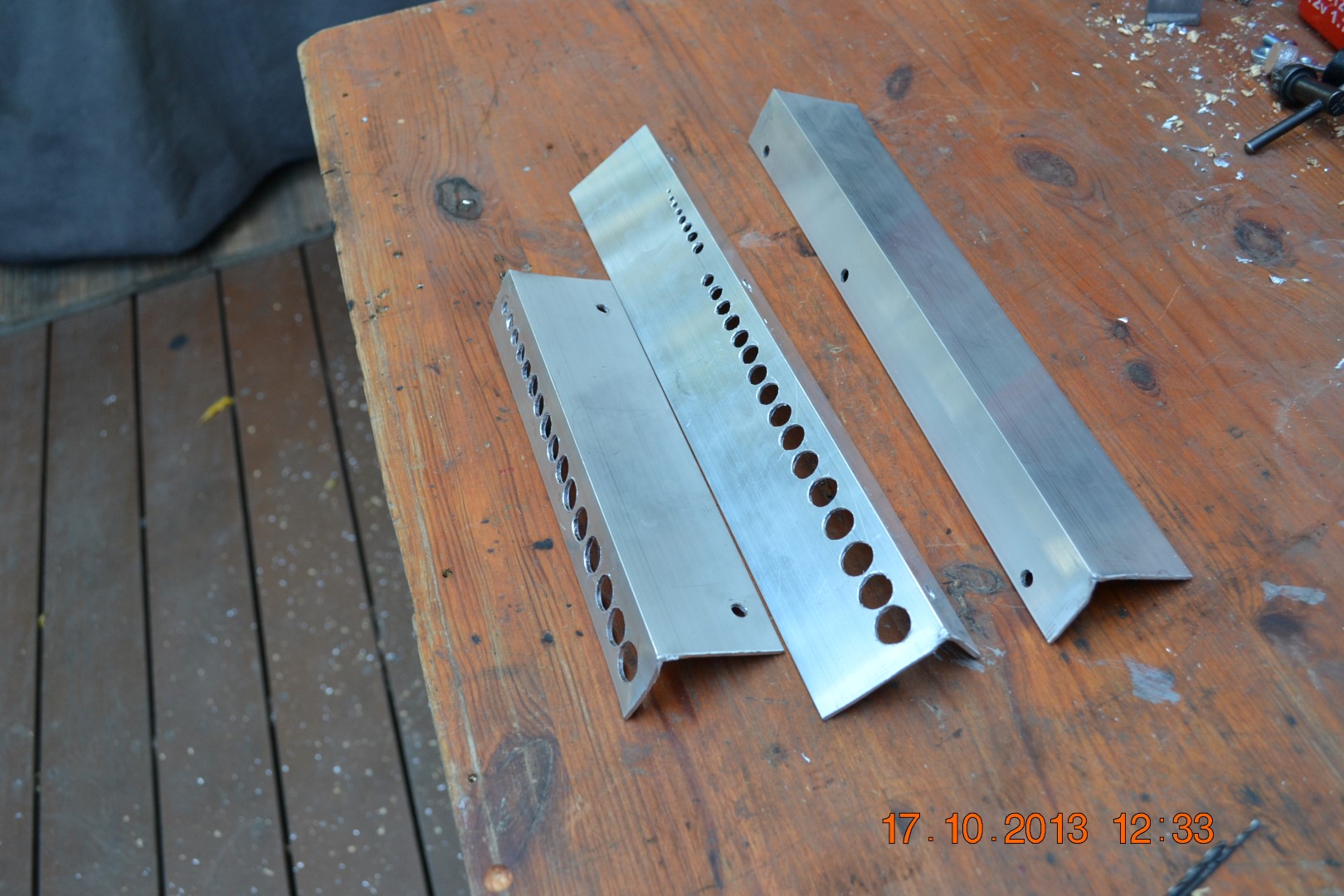

In order for each drill to fit perfectly to the stand . i had to work in the next order:

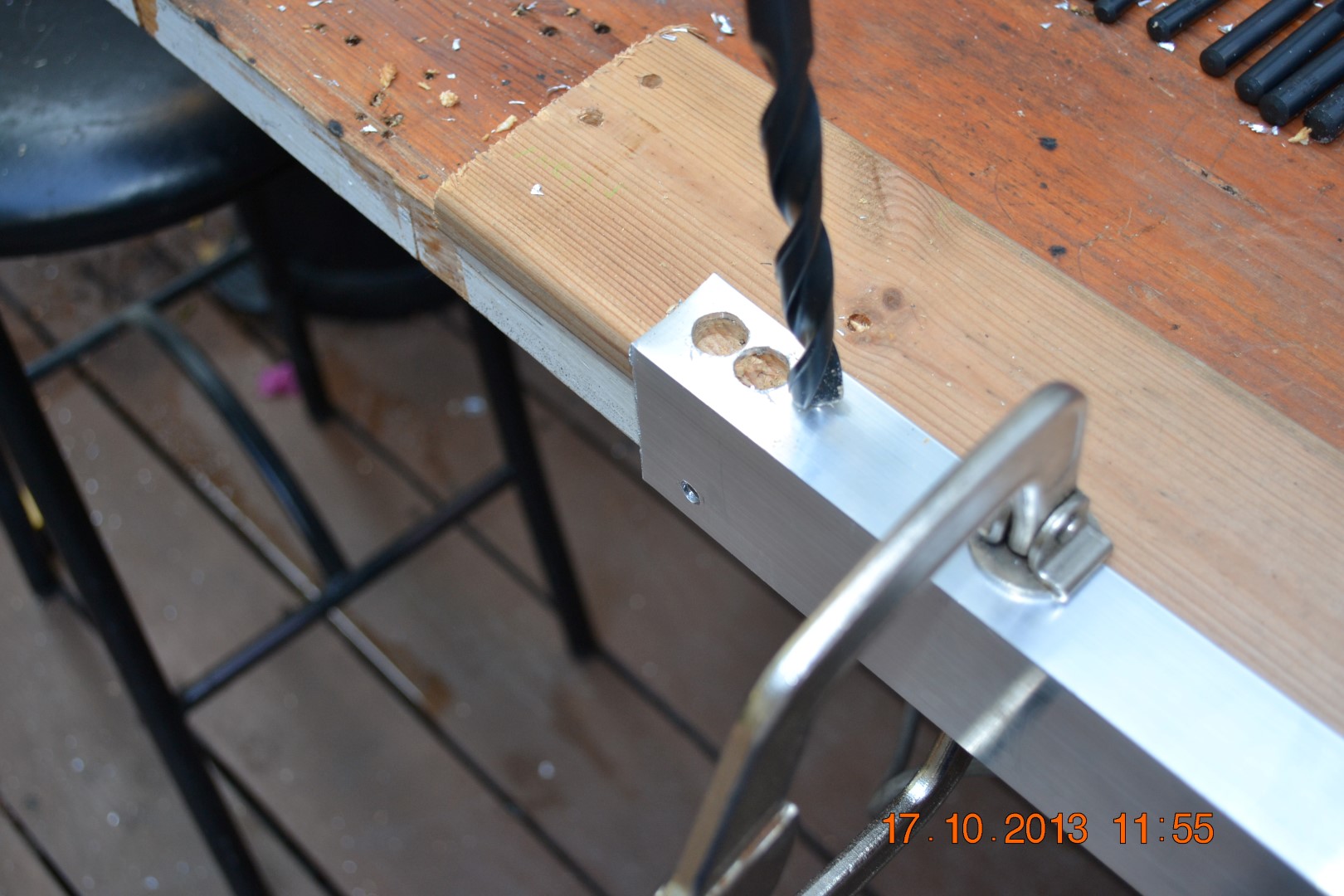

1. Take biggest drill bit , insert to drill and drill the aluminum. - one hole ready.
2. Disassemble previous drill from step one and insert next drill in set , drill the aluminum .. and so fort ...

 Overall , one set of 25 Drills took my more than hour and a half...





Sand and remove sharp edges via the Dremel Tool

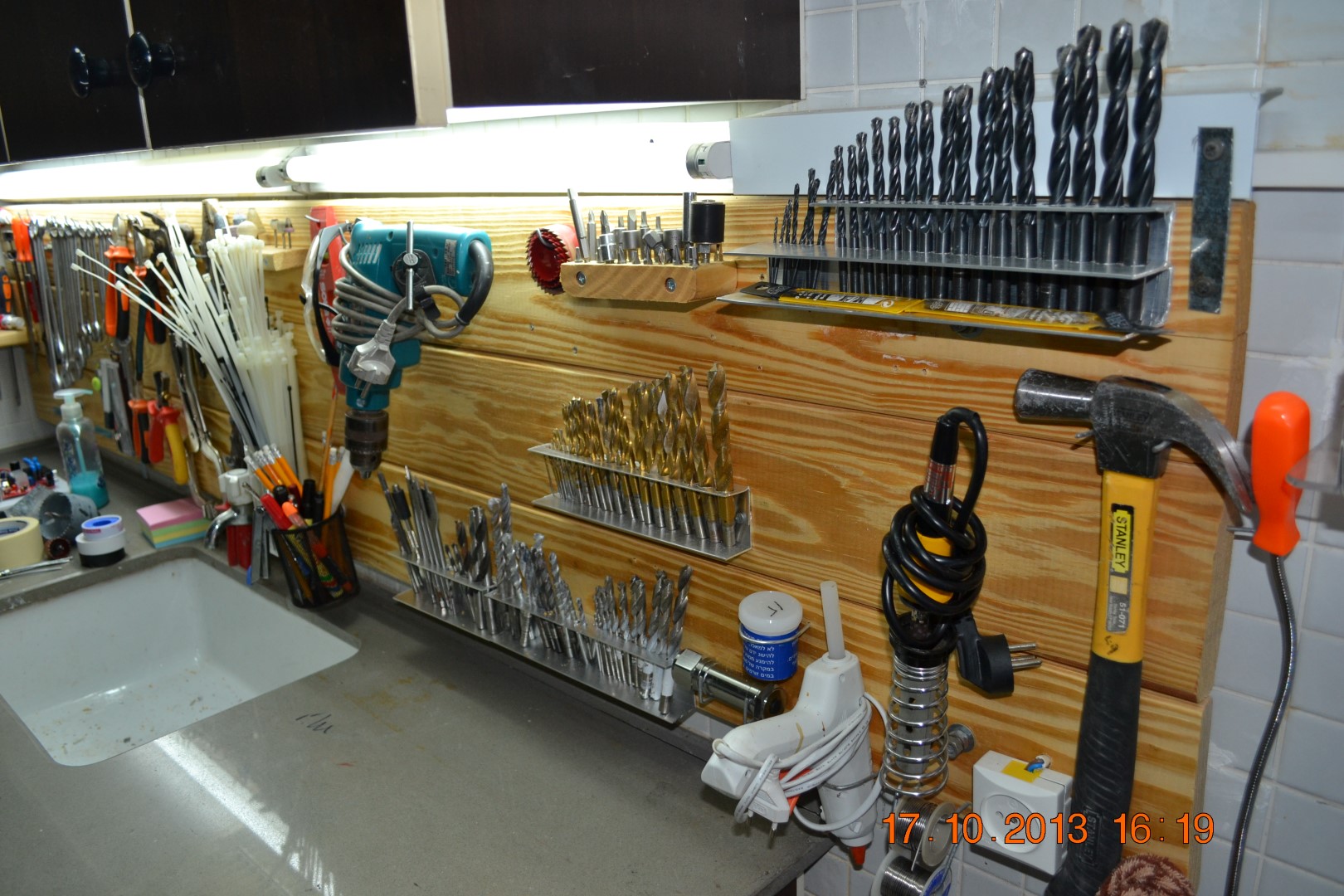

I finished with the new set.


Beside him, i had a few other older Drill bits . and i would not neglect them....



So i built one for them also
