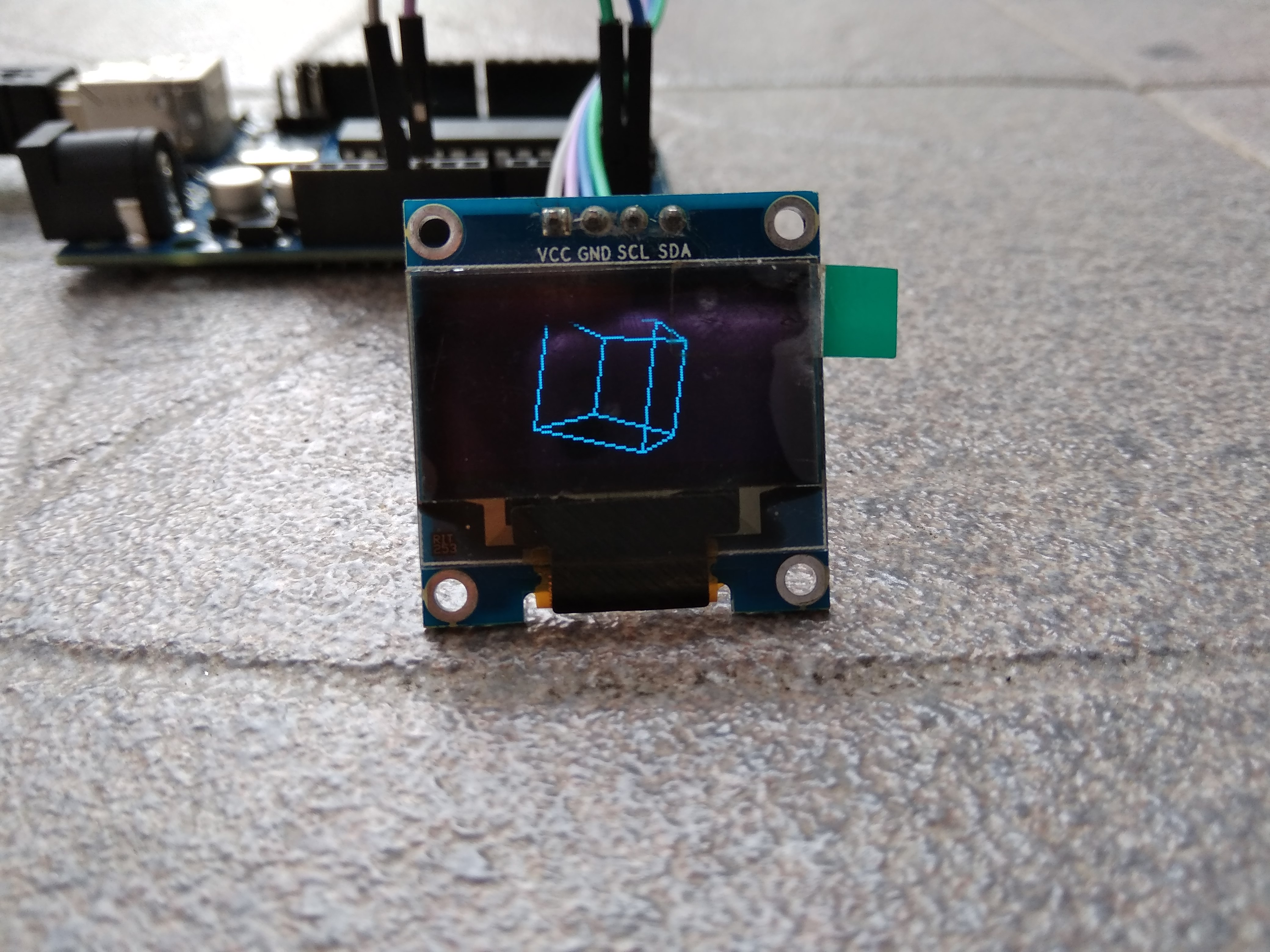

How to Control I2C Oled Display With Arduino

This Is A Very Simple Tutorial Of How to Control I2C Oled Display With Arduino

If You Like This Instructable Please Subscribe To My Channel

https://www.youtube.com/ZenoModiff

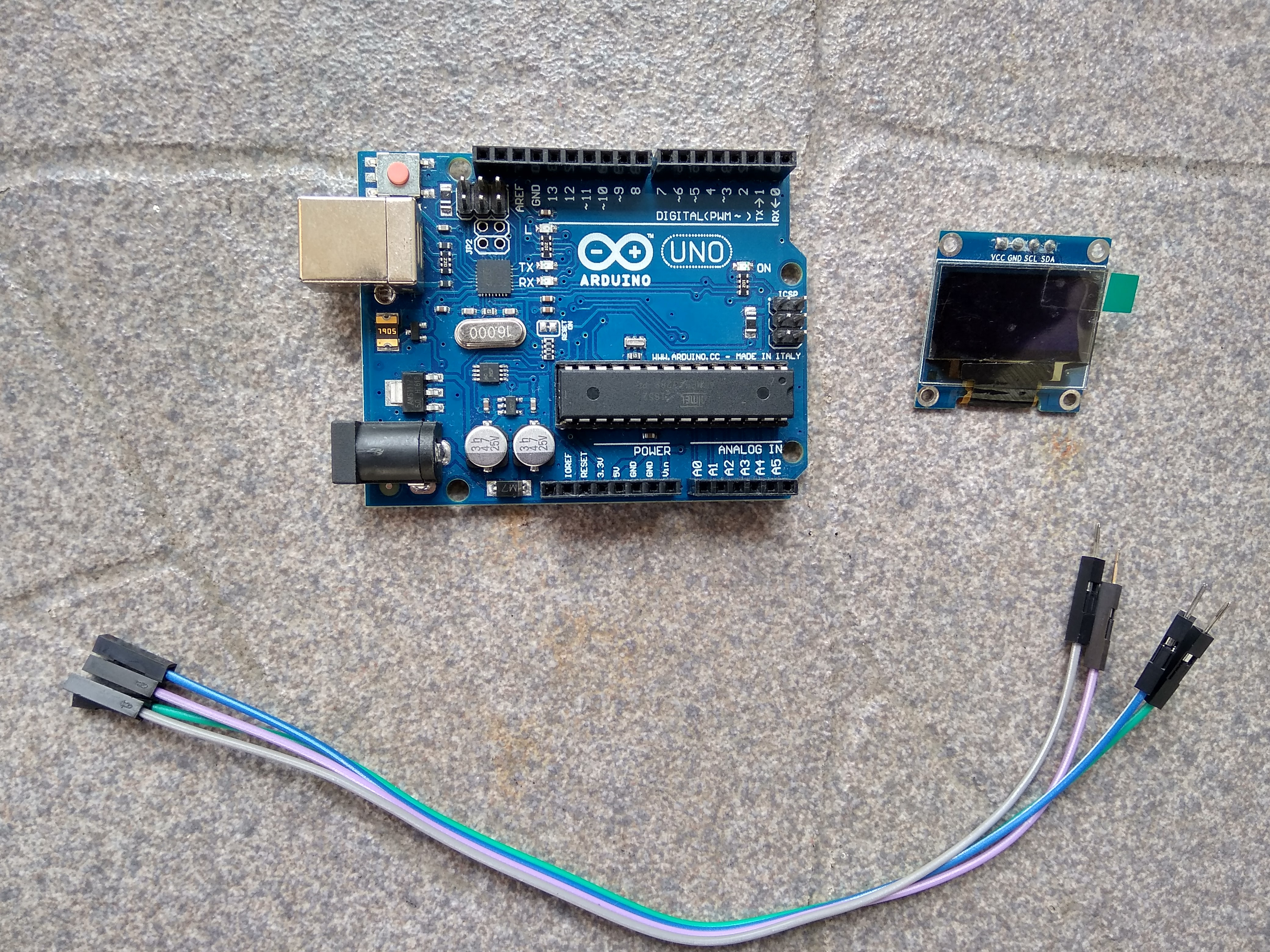

* ARDUINO UNO

* I2C OLED DISPLAY

* MALE - FEMALE JUMPERS

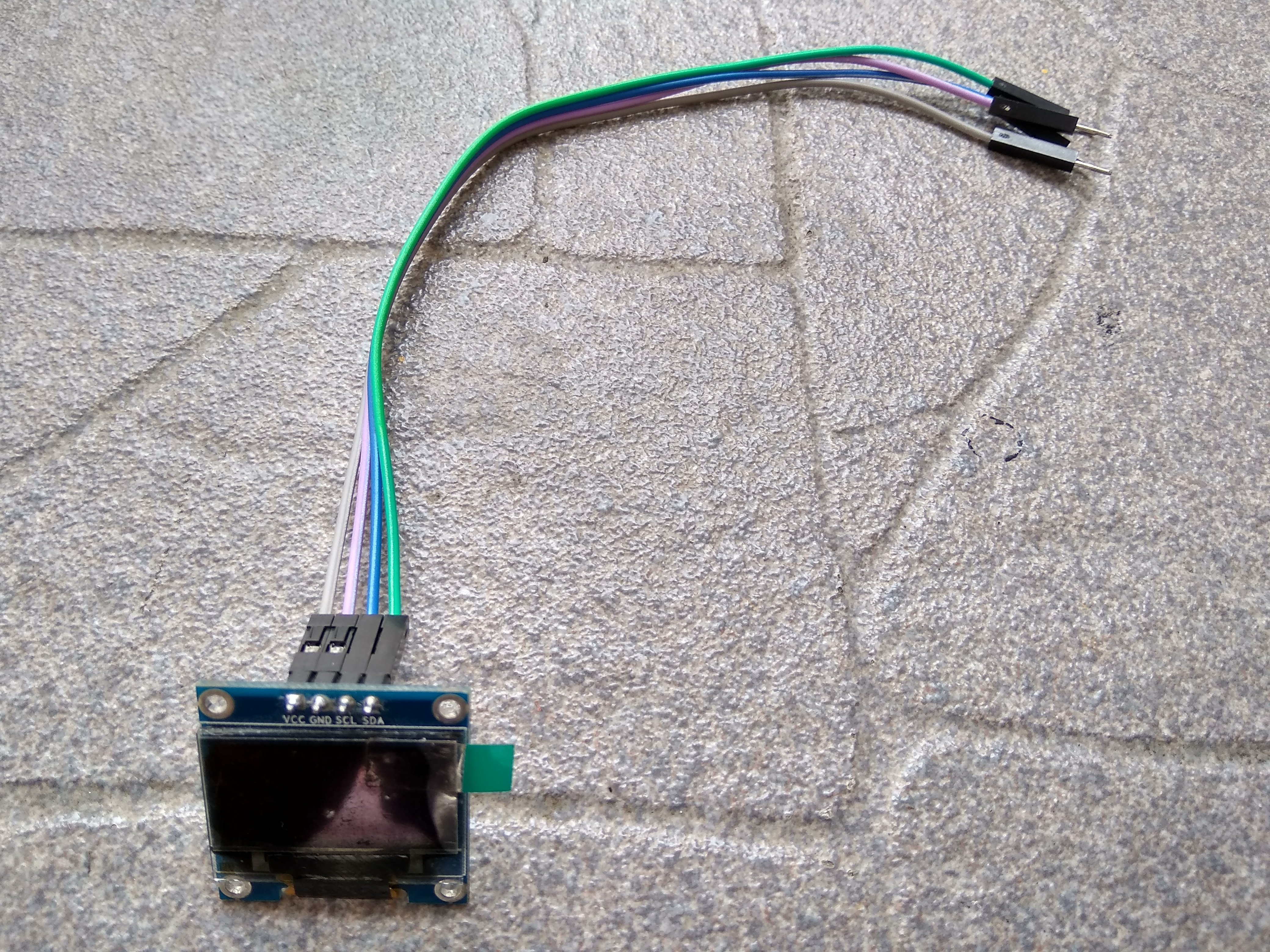

Connect The Jumpers To The I2C Oled Display ...

Connect I2C Oled Dispaly To Arduino

* VCC - VCC

* GND - GND

* SCL - A5

* SDA - A4

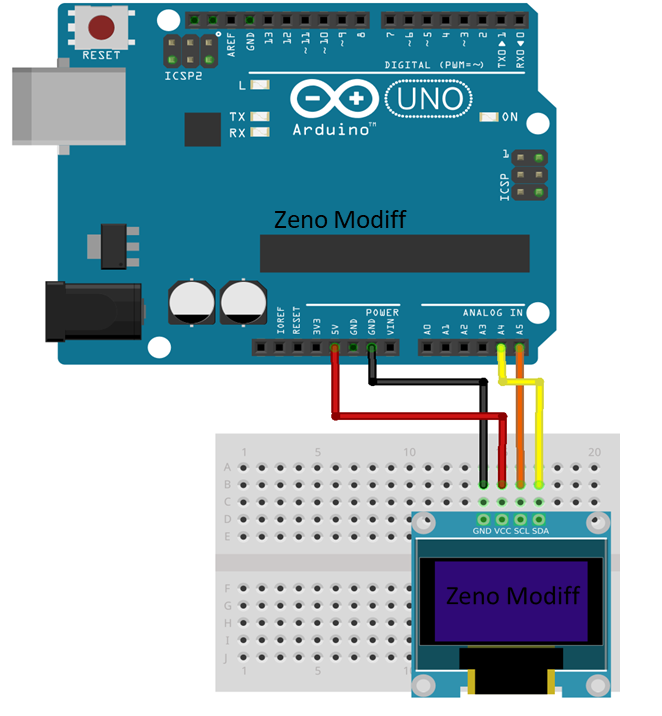

Refer Schematics

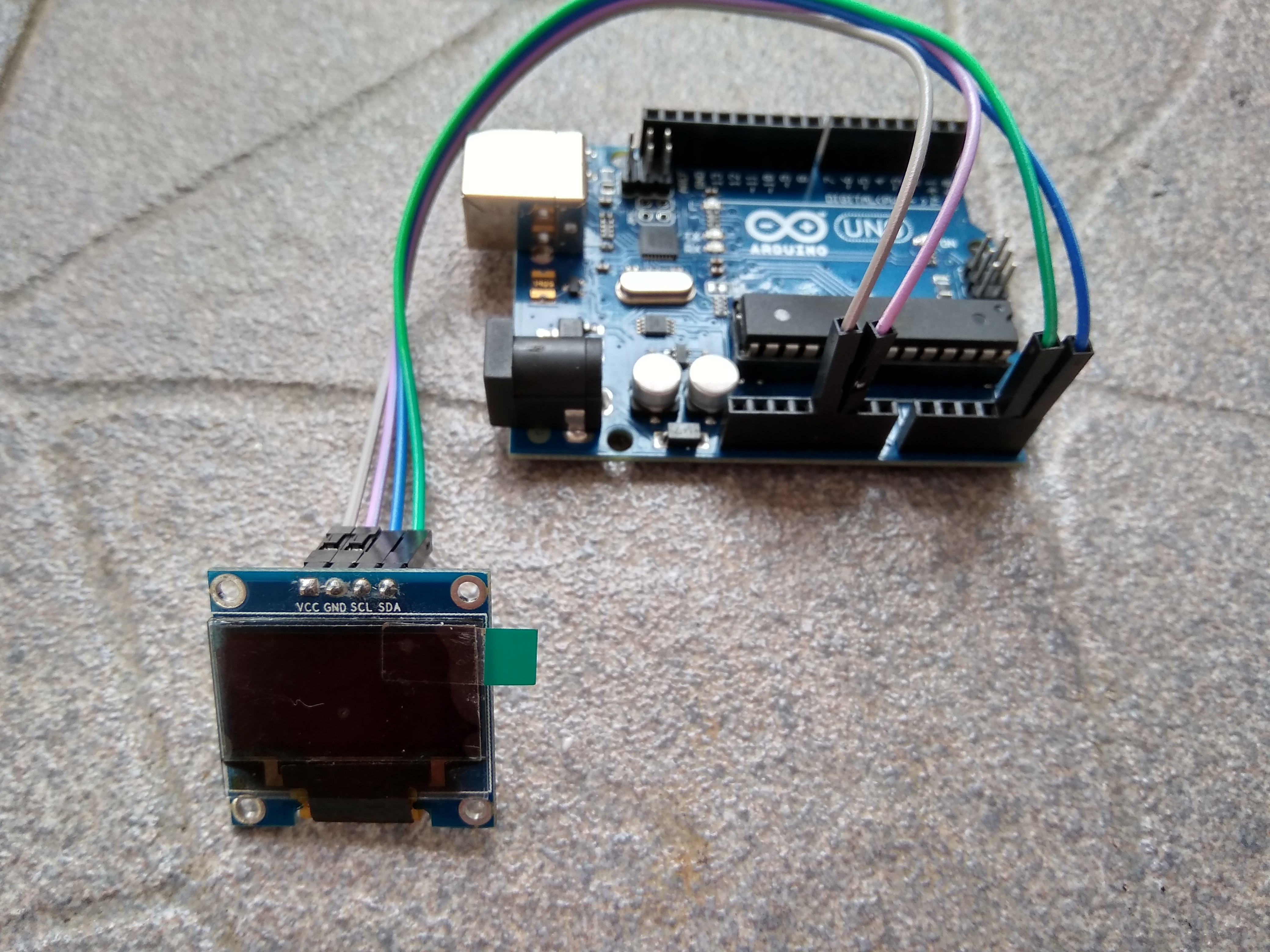

Wiring Has Done ;)

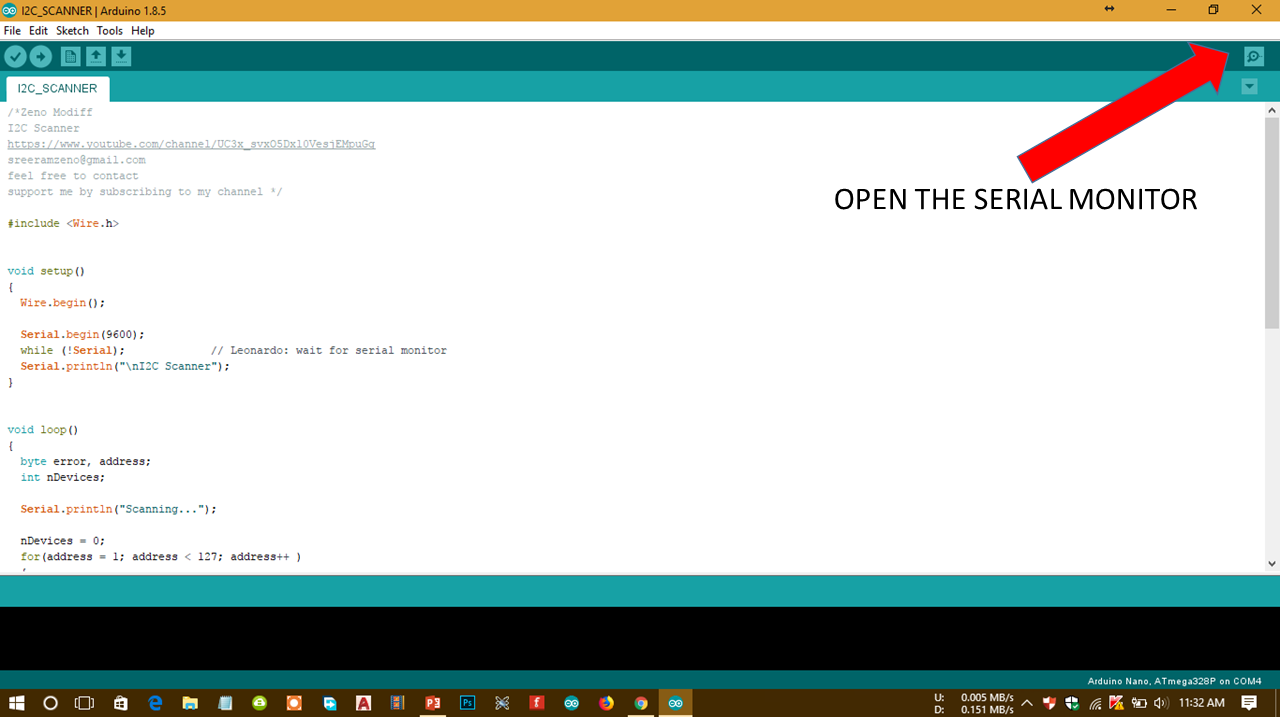

Download The I2C Scanner From Here :-- http://www.mediafire.com/file/d6xu6gb4lqy00x4/I2C_...

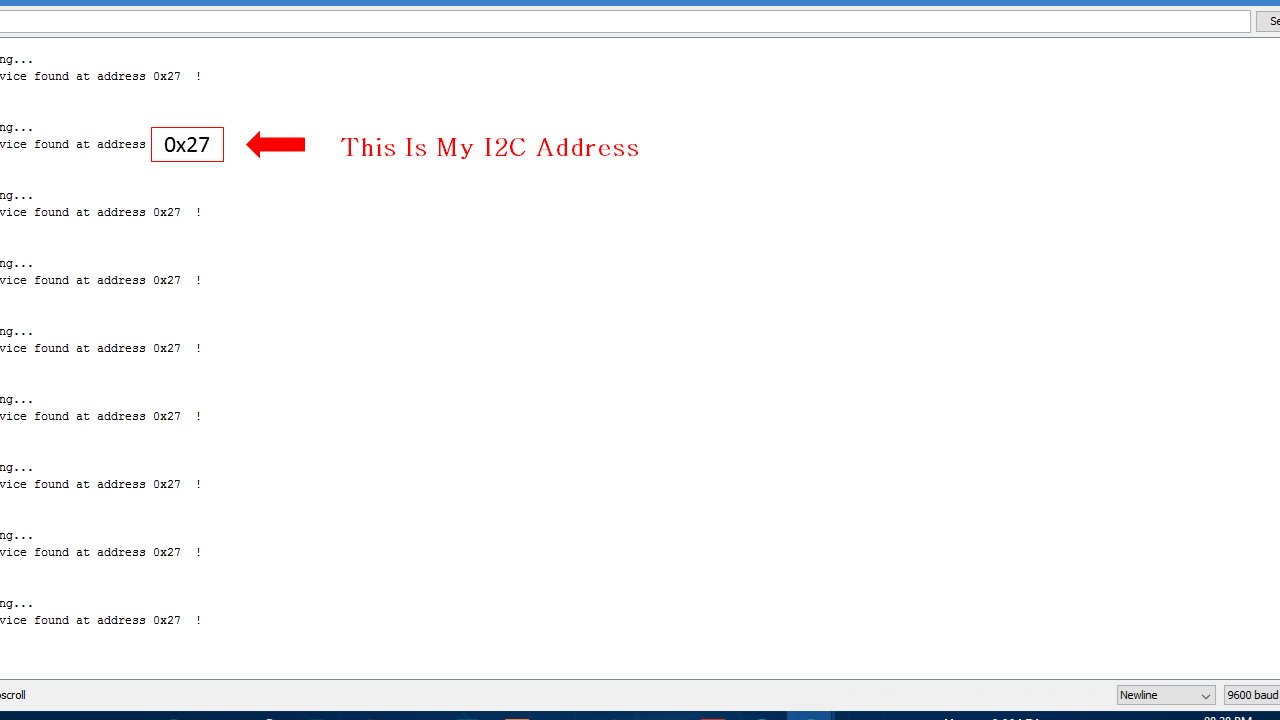

This Is My I2C Address Your Will Be Different

I Have Done This To Make You Know About Your I2C Address

Now We Dont Need This ...

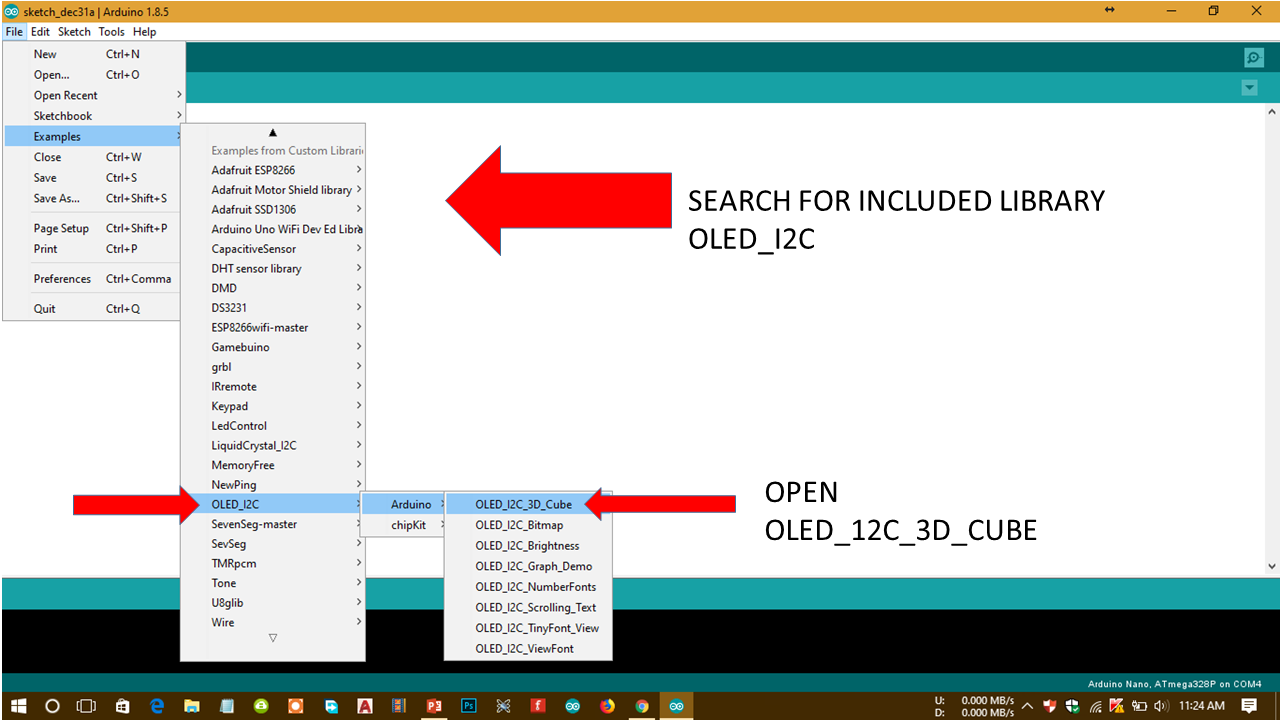

Open Arduino Ide & Include This Library :-- http://www.rinkydinkelectronics.com/library.php?id...

Check This Instructable If You Are Not Familier With This :--

https://www.instructables.com/id/How-to-Add-Arduin...

And Open The Sketch Then Upload It By Checking The Correct Com Port & Board Name

Arduino Main Software :-- https://www.arduino.cc/en/Main/Software

Code :-- http://www.mediafire.com/file/d6xu6gb4lqy00x4/I2C...

Schematics :-- http://www.mediafire.com/view/gz39vdrt1l6h741/i2c...

Library :-- http://www.rinkydinkelectronics.com/library.php?i...
