How to Make a Stopwatch Using Arduino

This Is A Very Simple Arduino 16*2 Lcd Display Stopwatch ...........

If You Like This Instructable Please Subscribe To My Channel

https://www.youtube.com/ZenoModiff

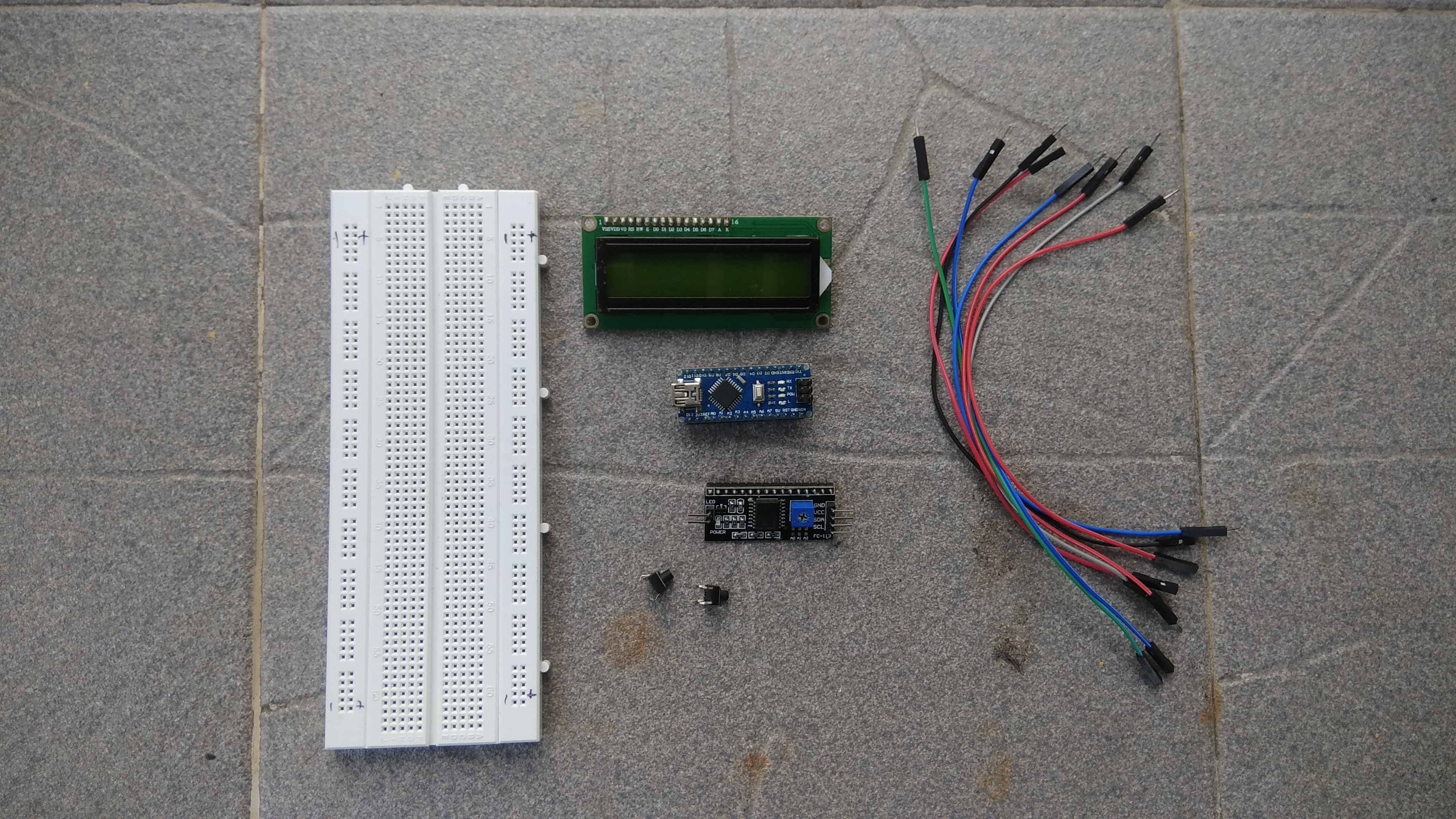

* ARDUINO NANO

* I2C LCD MODULE

* PUSH BUTTON SWITCH

* BREADBOARD

* MALE - MALE JUMPERS

* MALE - FEMALE JUMPERS

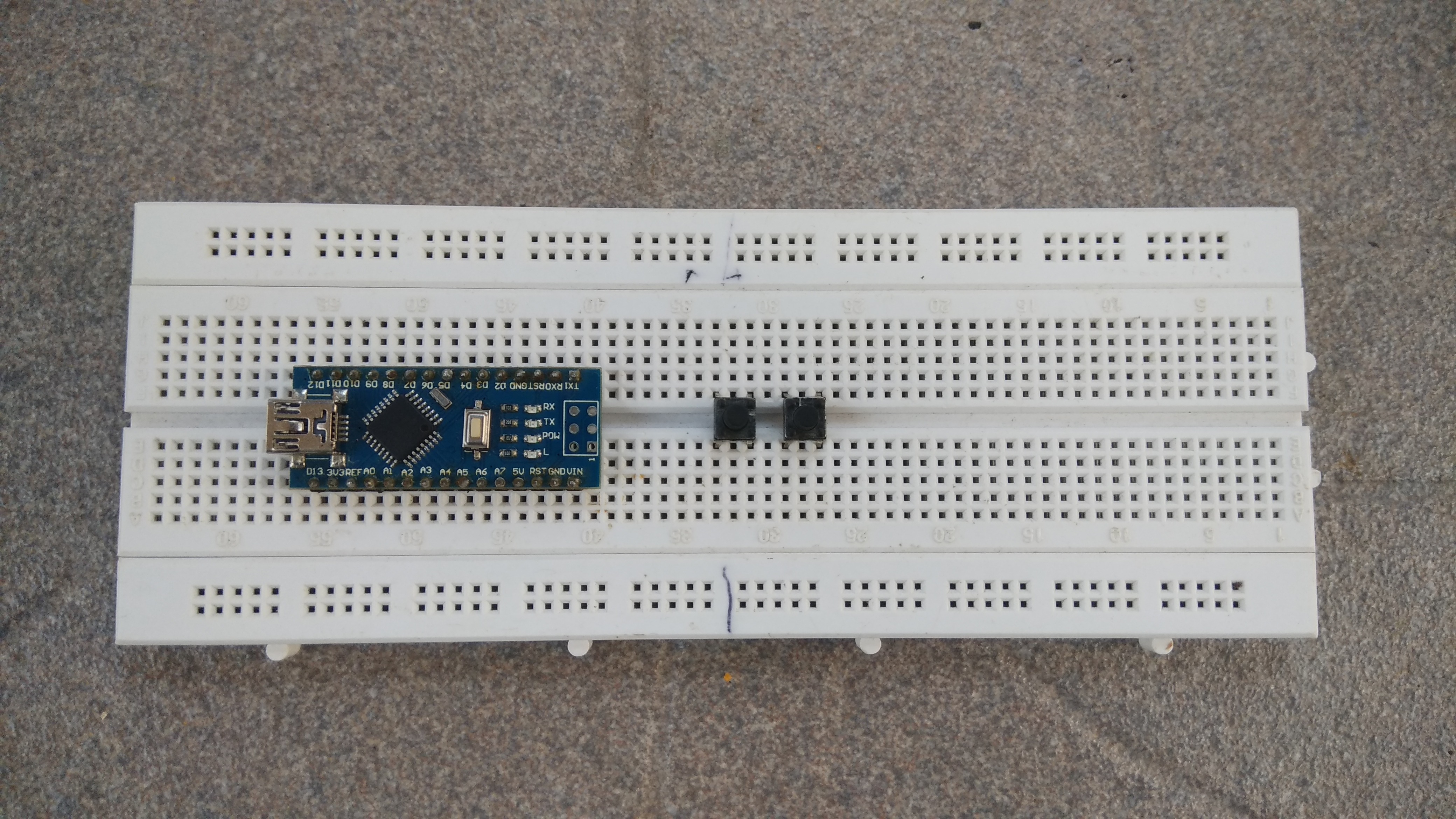

Connect The Arduino Nano & Push Buttons To The Breadboard

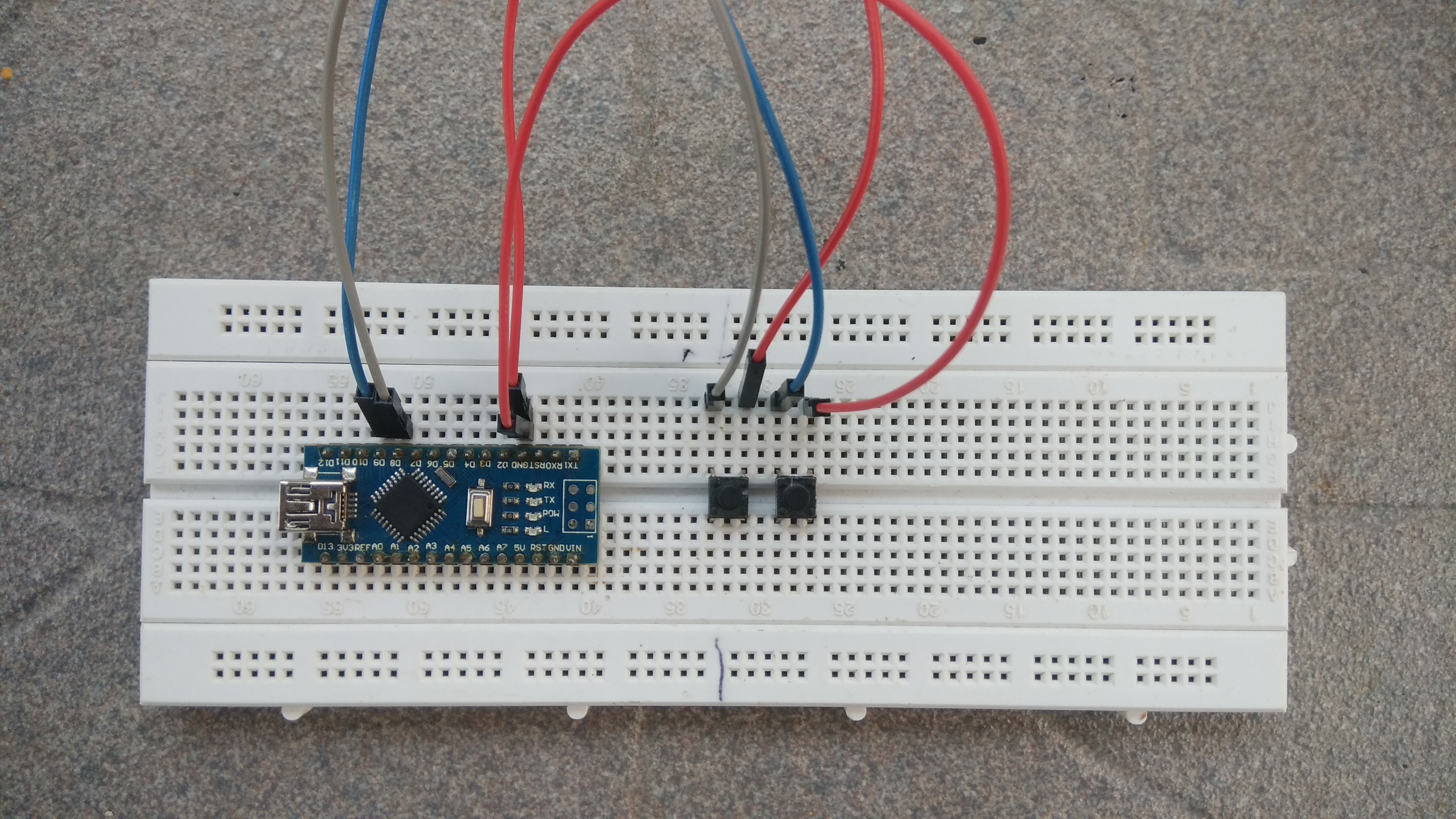

Connect The Wires To The Push Buttons ......

According To Schematics .........

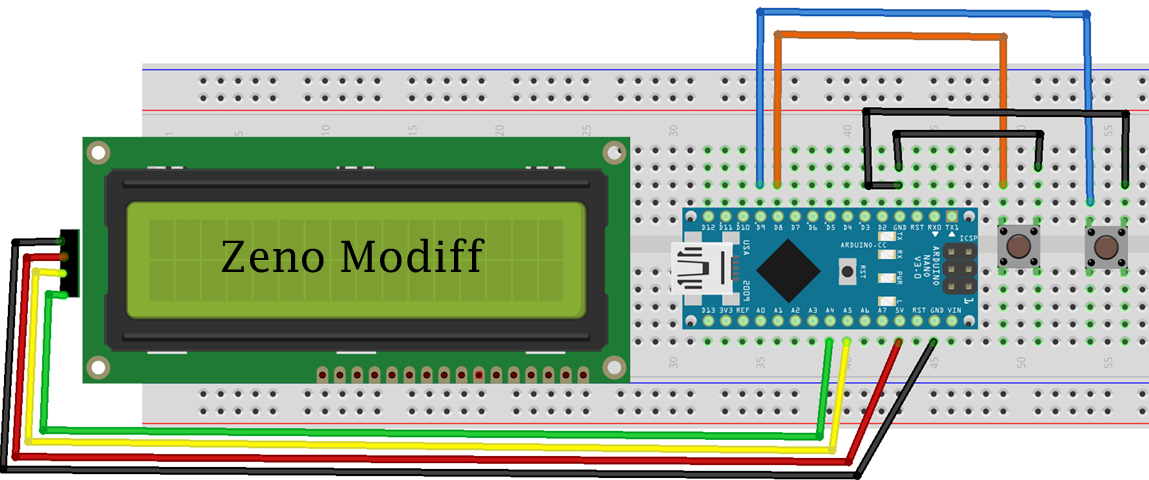

Check Below For Shematics ..........

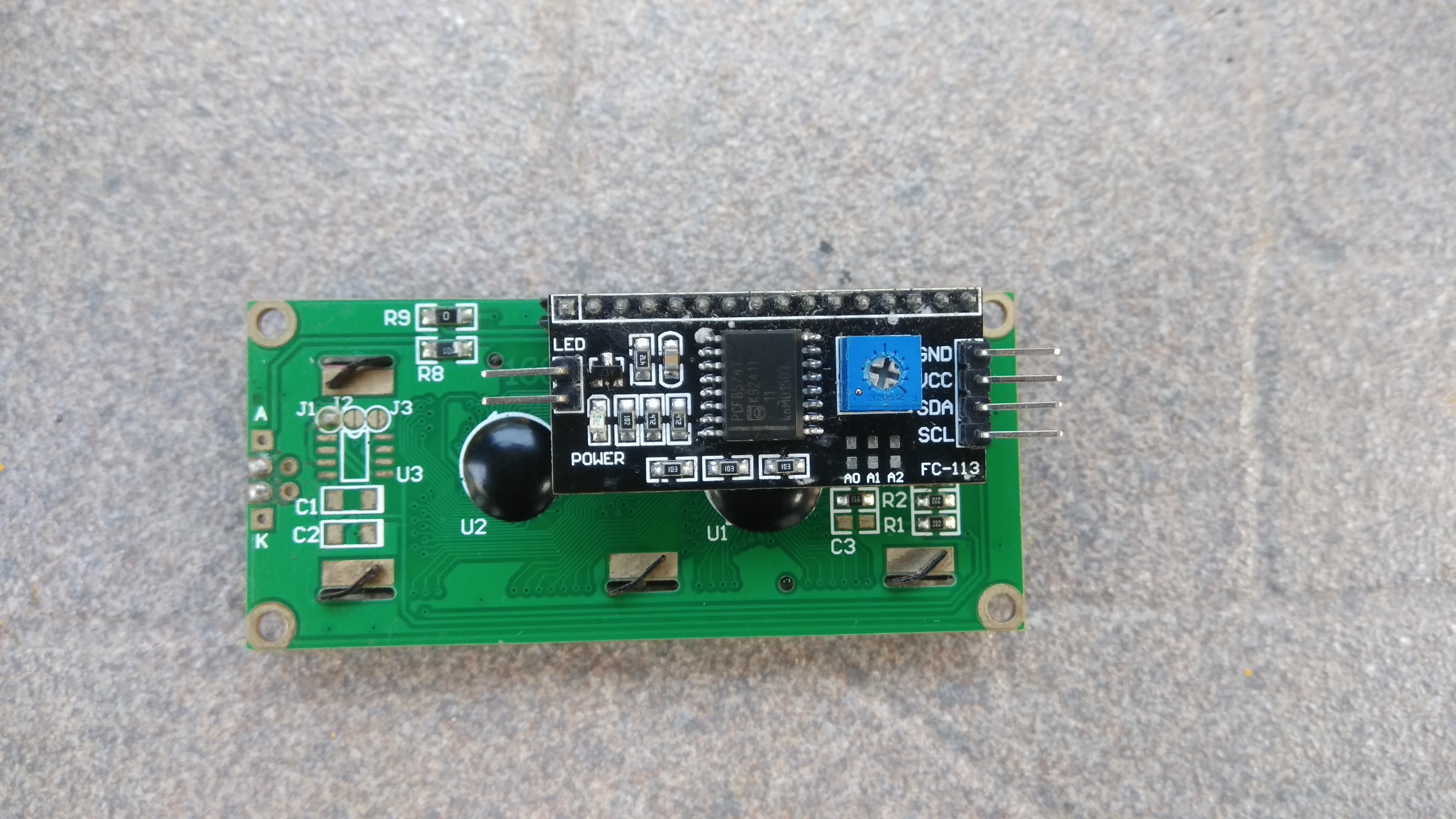

Connect The I2C Module To The Lcd Display .........

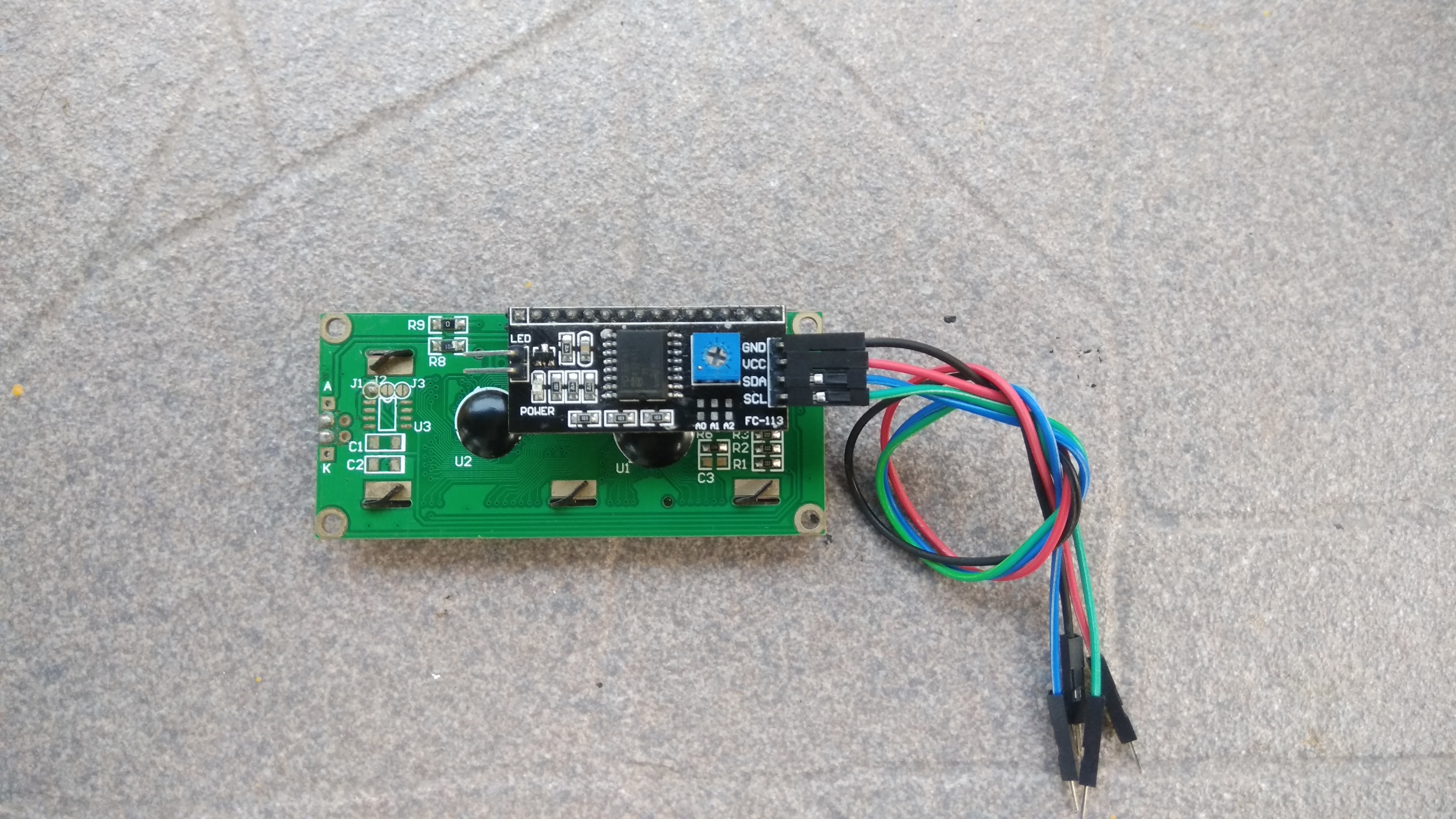

Connect Male - Female Jumpers To I2C Module .....

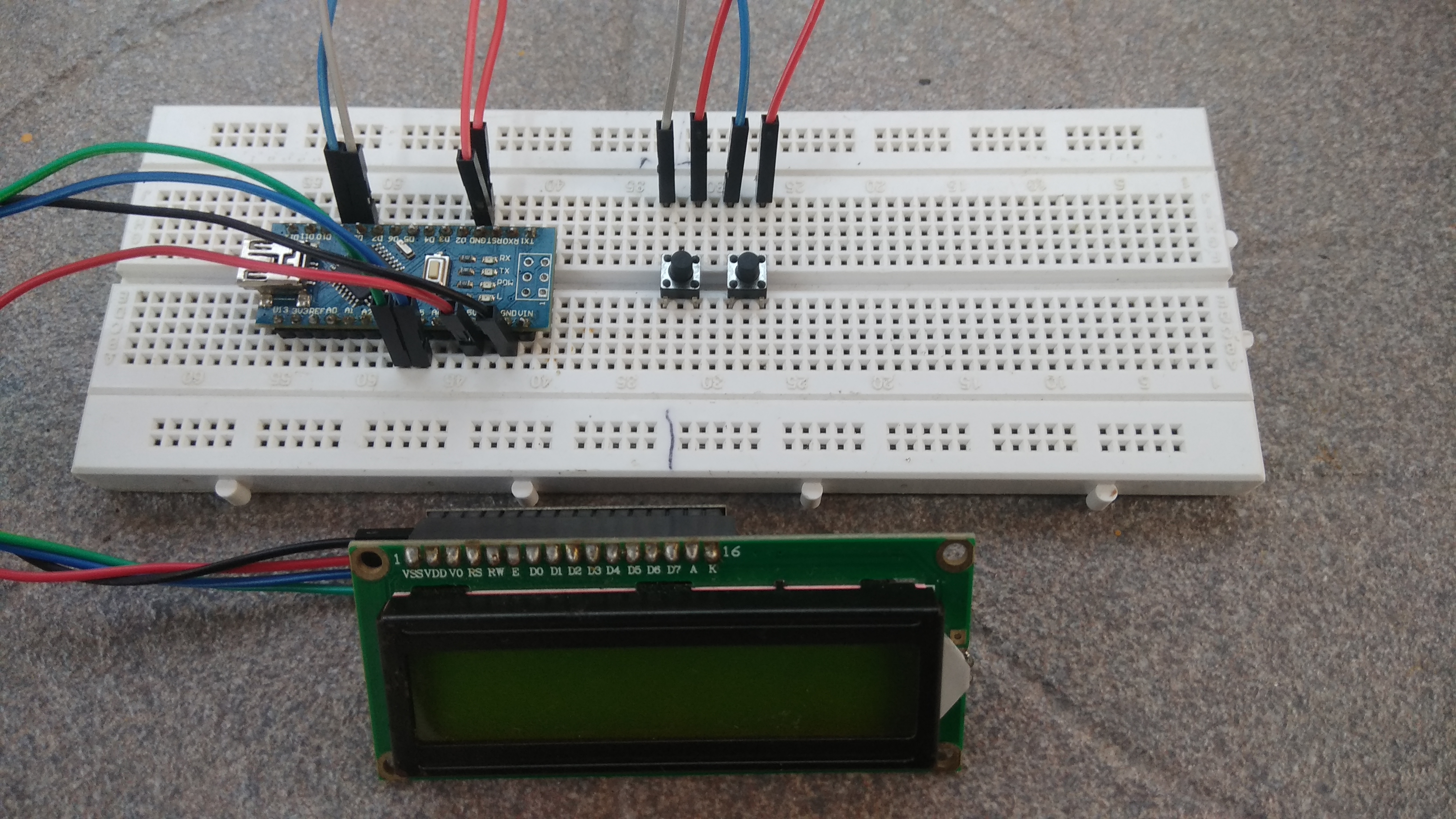

Connect The I2C Module To The Arduino

GND - ARDUINO GND

VCC - ARDUINO 5V

SDA - ARDUINO A4

SCL - ARDUINO A5

For More Info Check This Instructable :-- https://goo.gl/U4KJPg

Arduino Main Software :-- https://www.arduino.cc/en/Main/Software

Code :-- http://www.mediafire.com/file/lrj4j46jv5rxc61/Stop...

Schematics :-- http://www.mediafire.com/view/j47zdxam8uuarwp/Ardu...
