Inventor Sweeping

During this tutorial, you will gain experience using Extrude, Sweep, Revolve, Hole, Chamfer and Fillet Features. You will also share sketches and work with 2D Constraints. Be sure to only use the Dimensions provided.

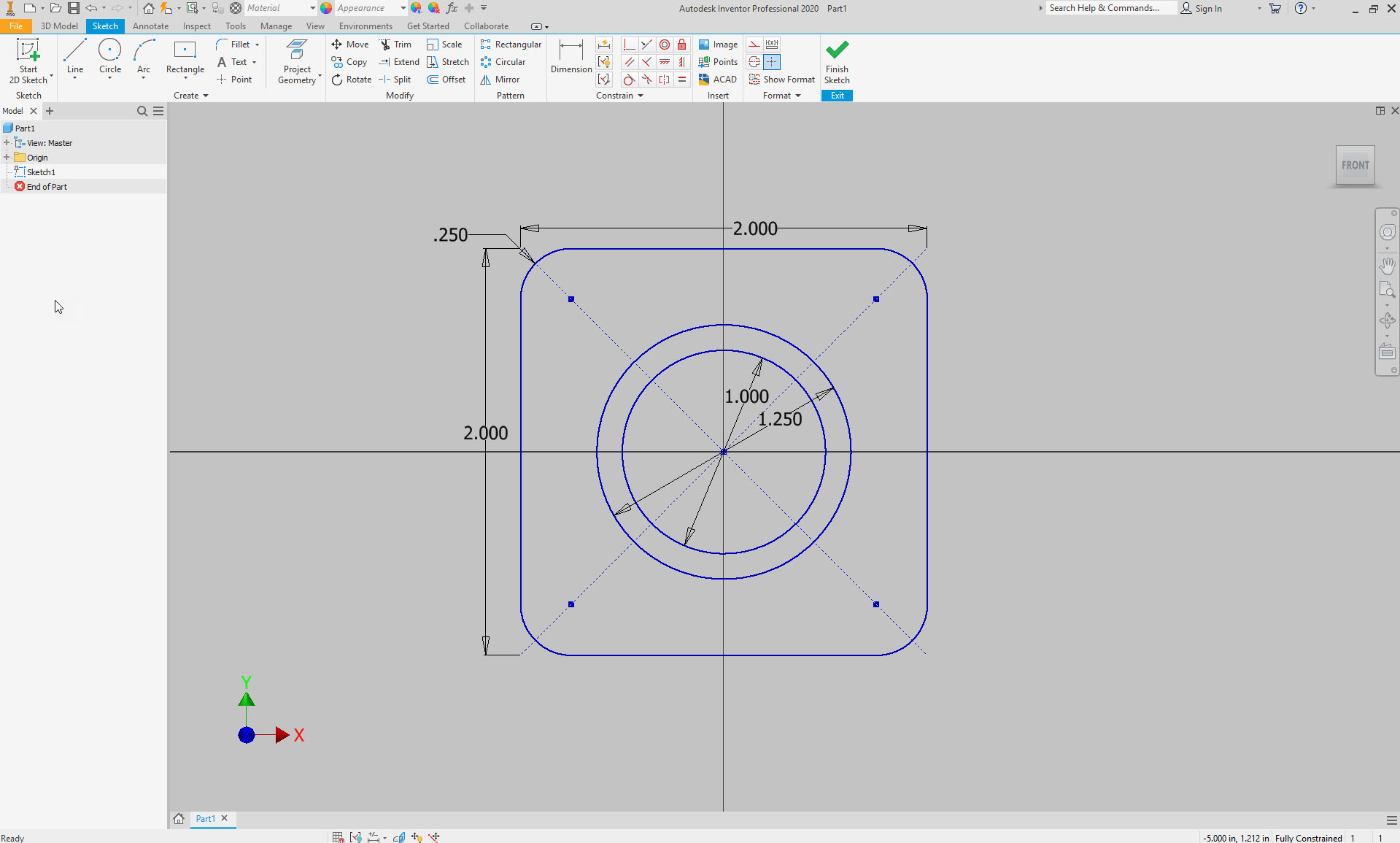

Create the First 2D Sketch

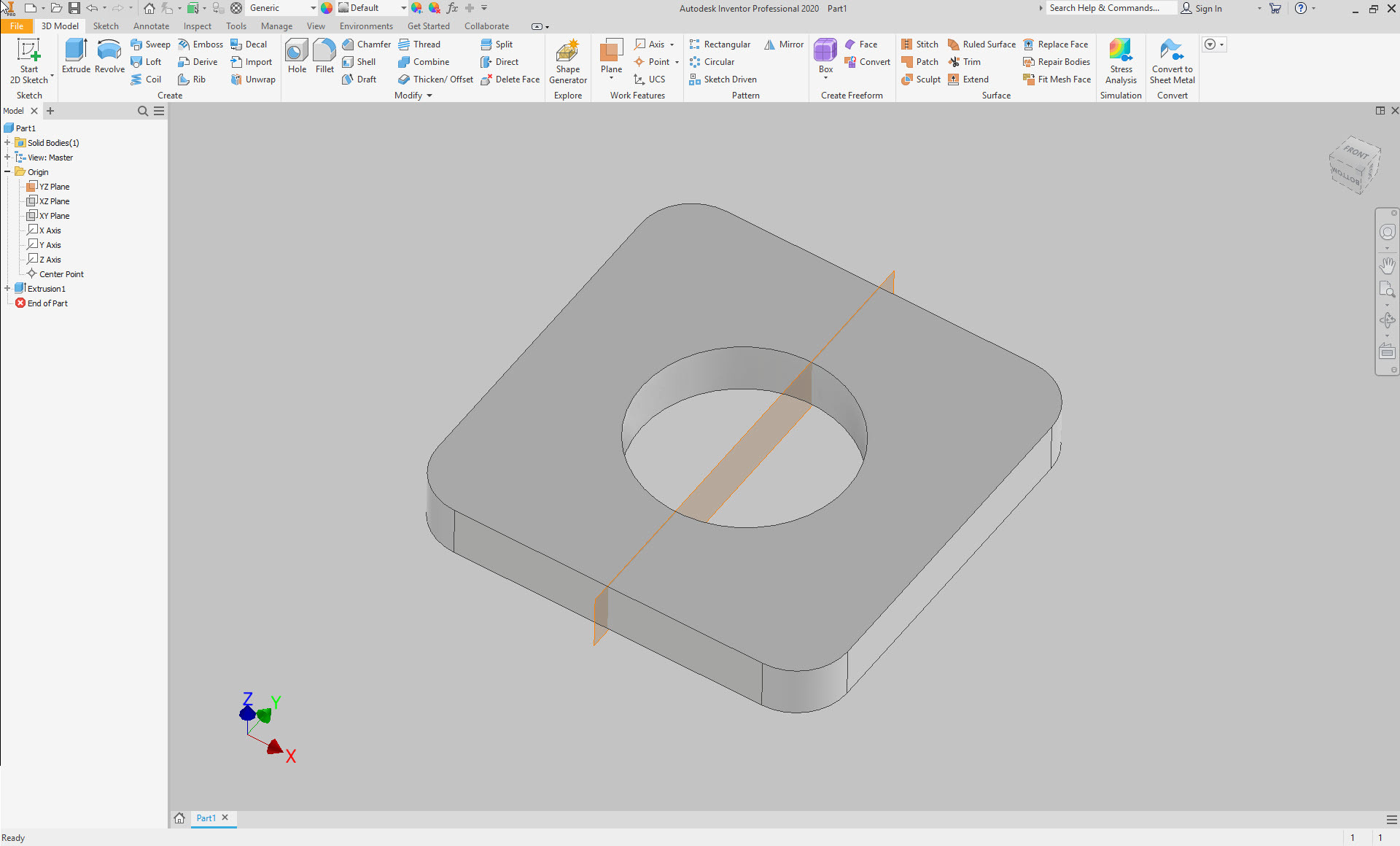

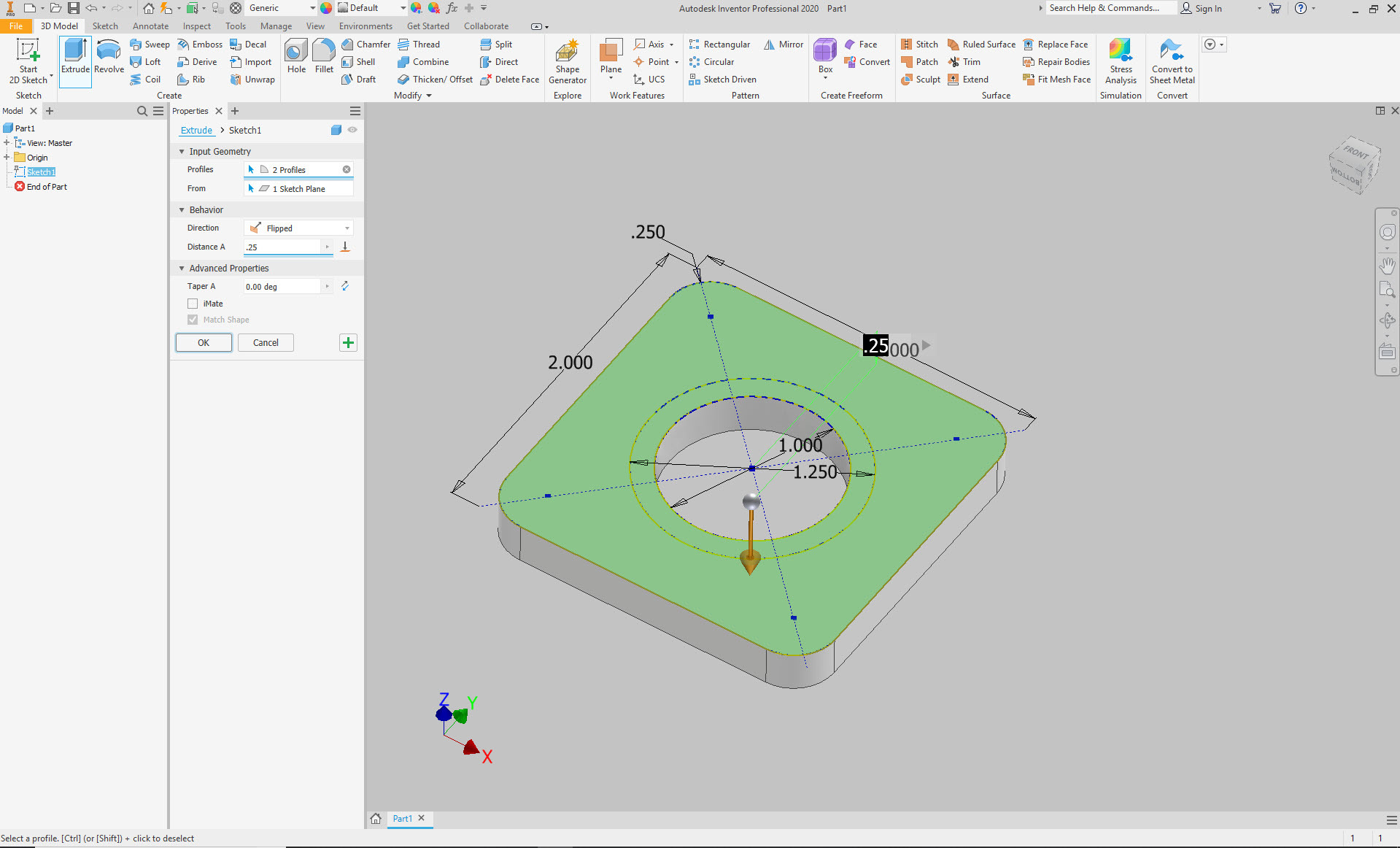

Create the Extrude Feature As Shown

Create a New 2D Sketch on an Origin Plane That Is Perpendicular to the Base 2D Sketch

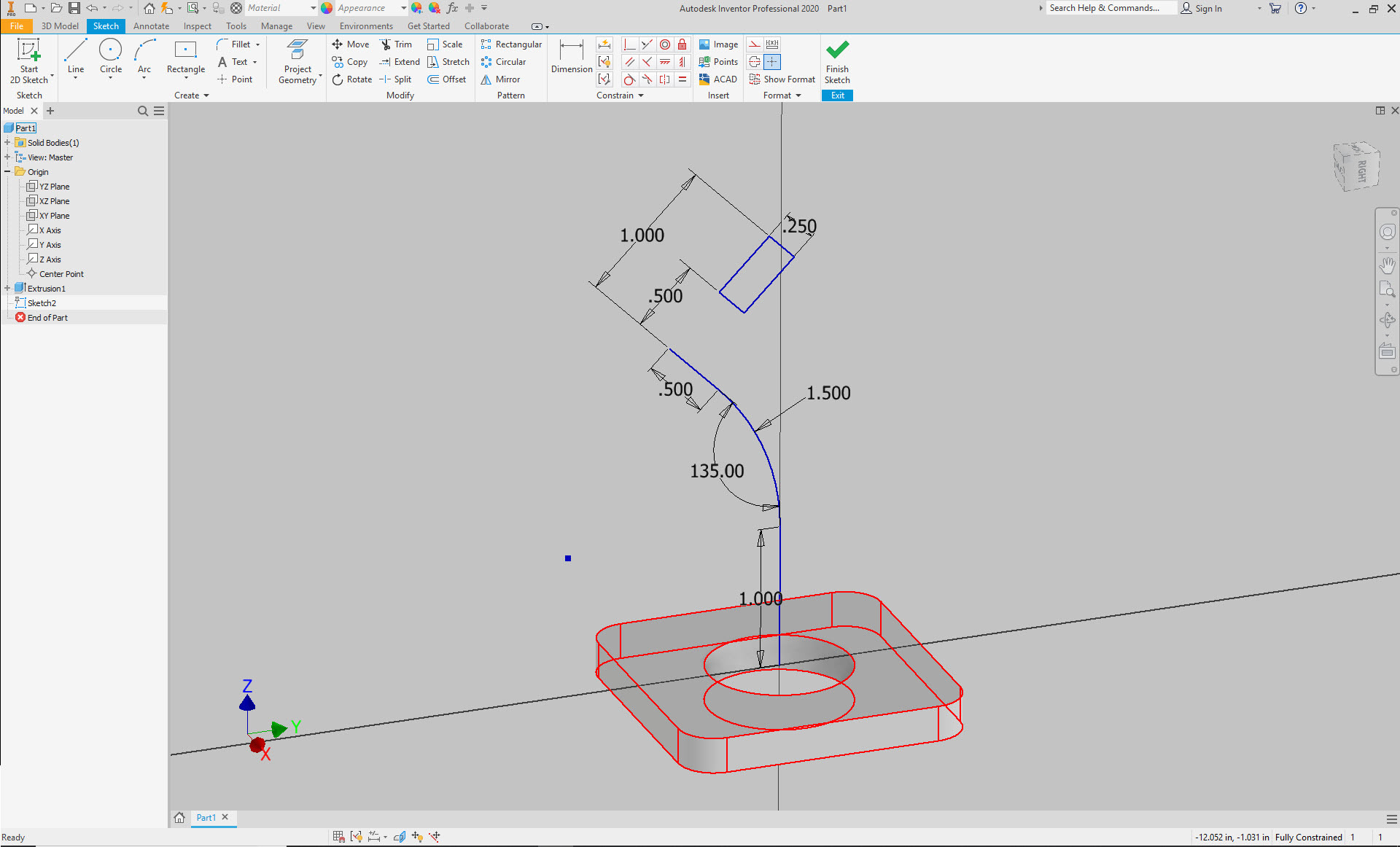

Create the New 2D Sketch As Shown

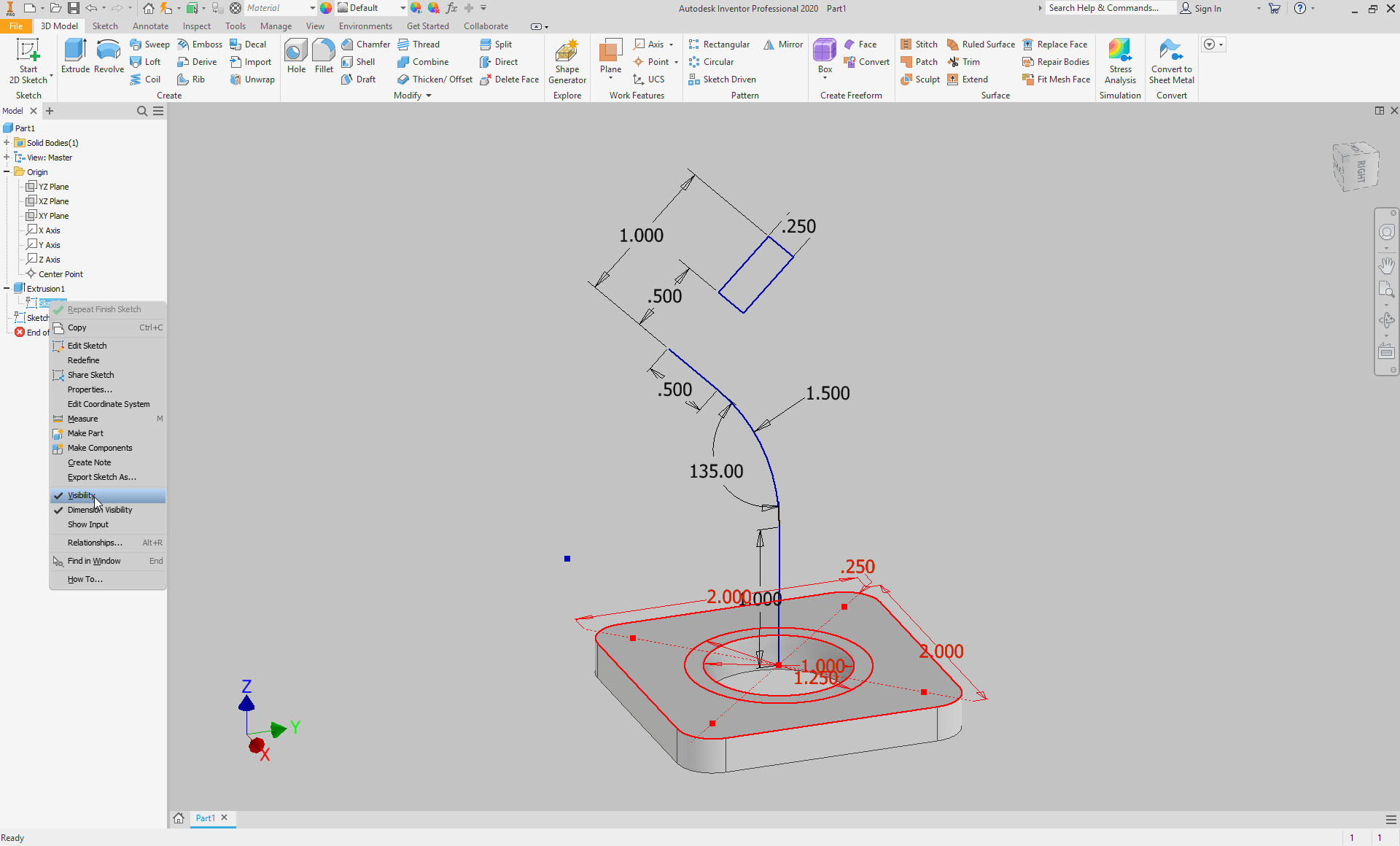

Turn on Sketch1 Visibility

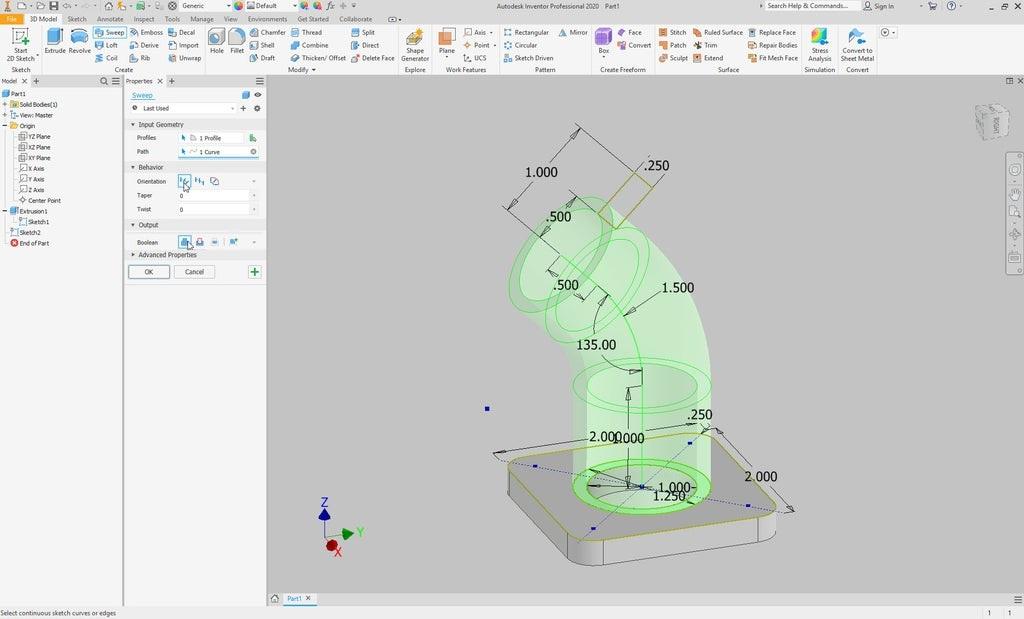

Create the Sweep Feature As Shown

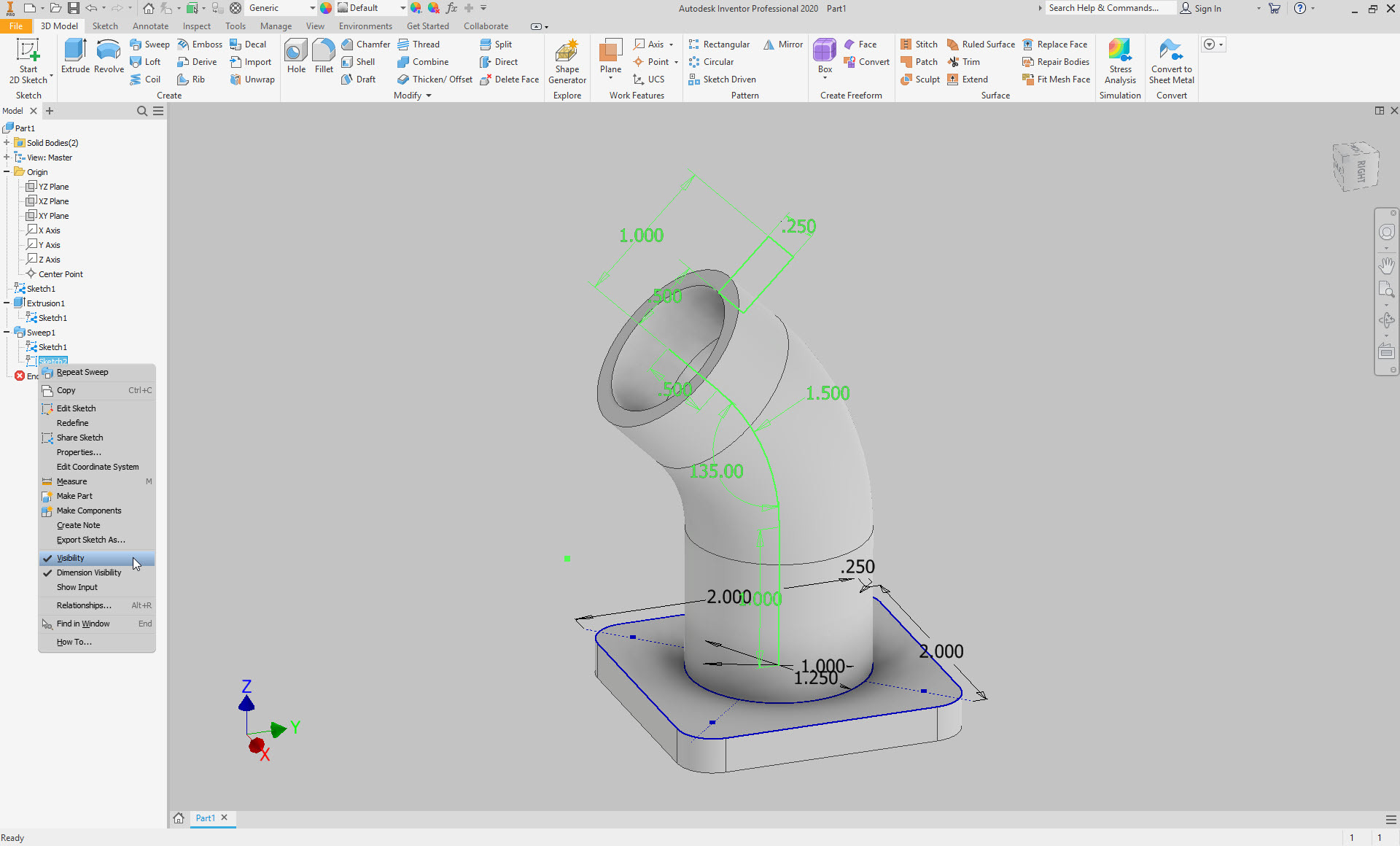

Turn on Sketch2 Visibility

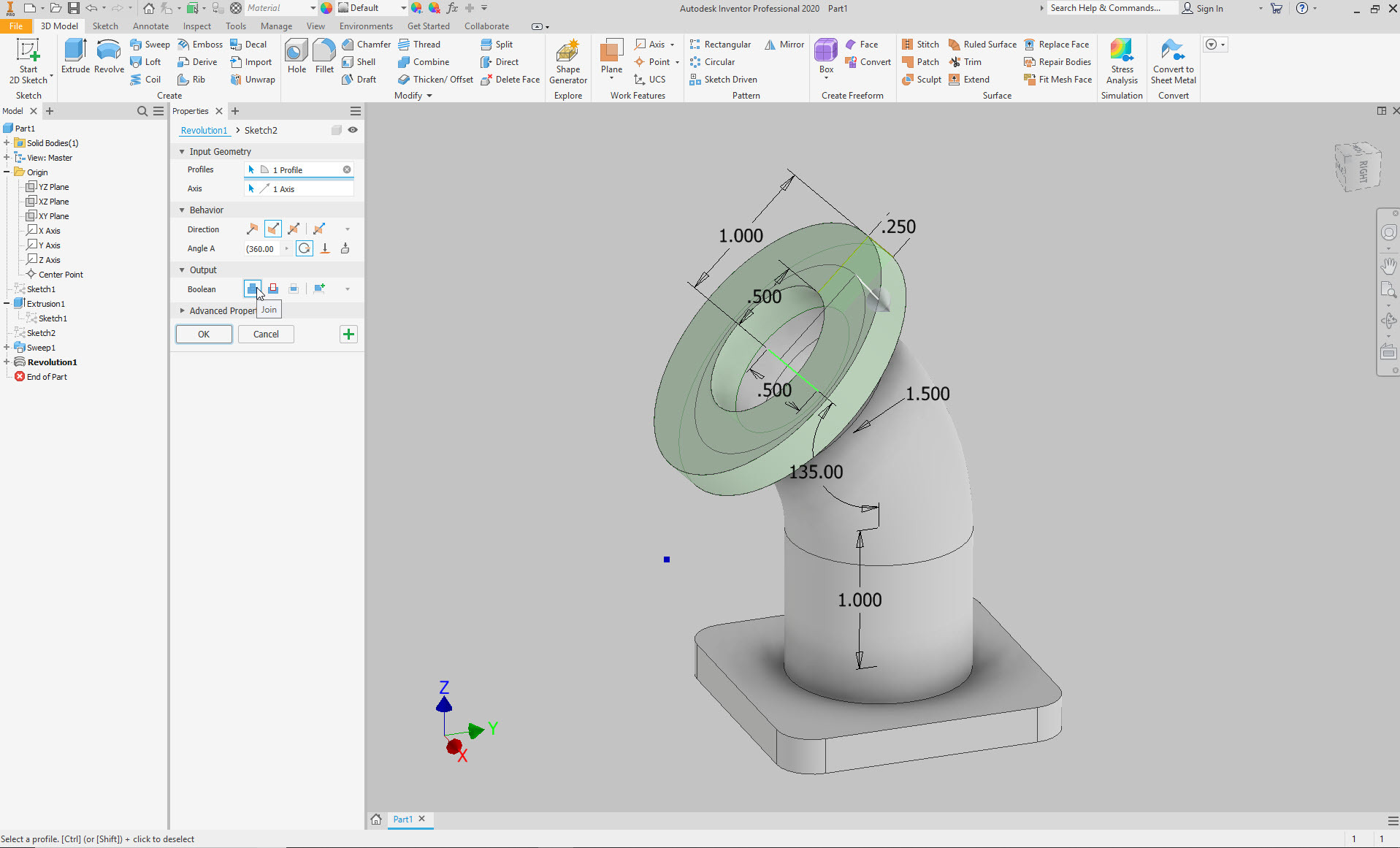

Create the Revolve Feature As Shown

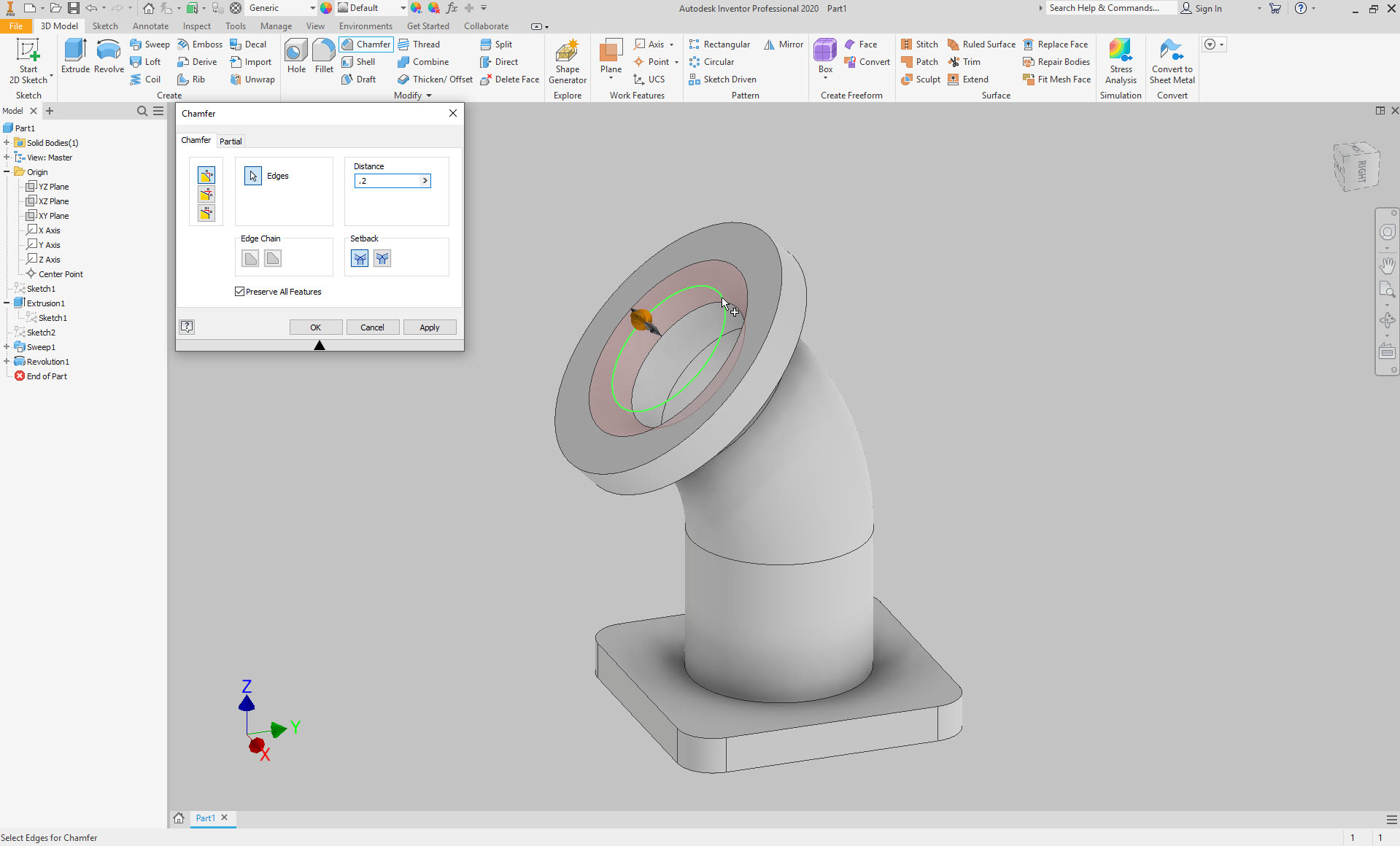

Apply the Chamfer Feature As Shown

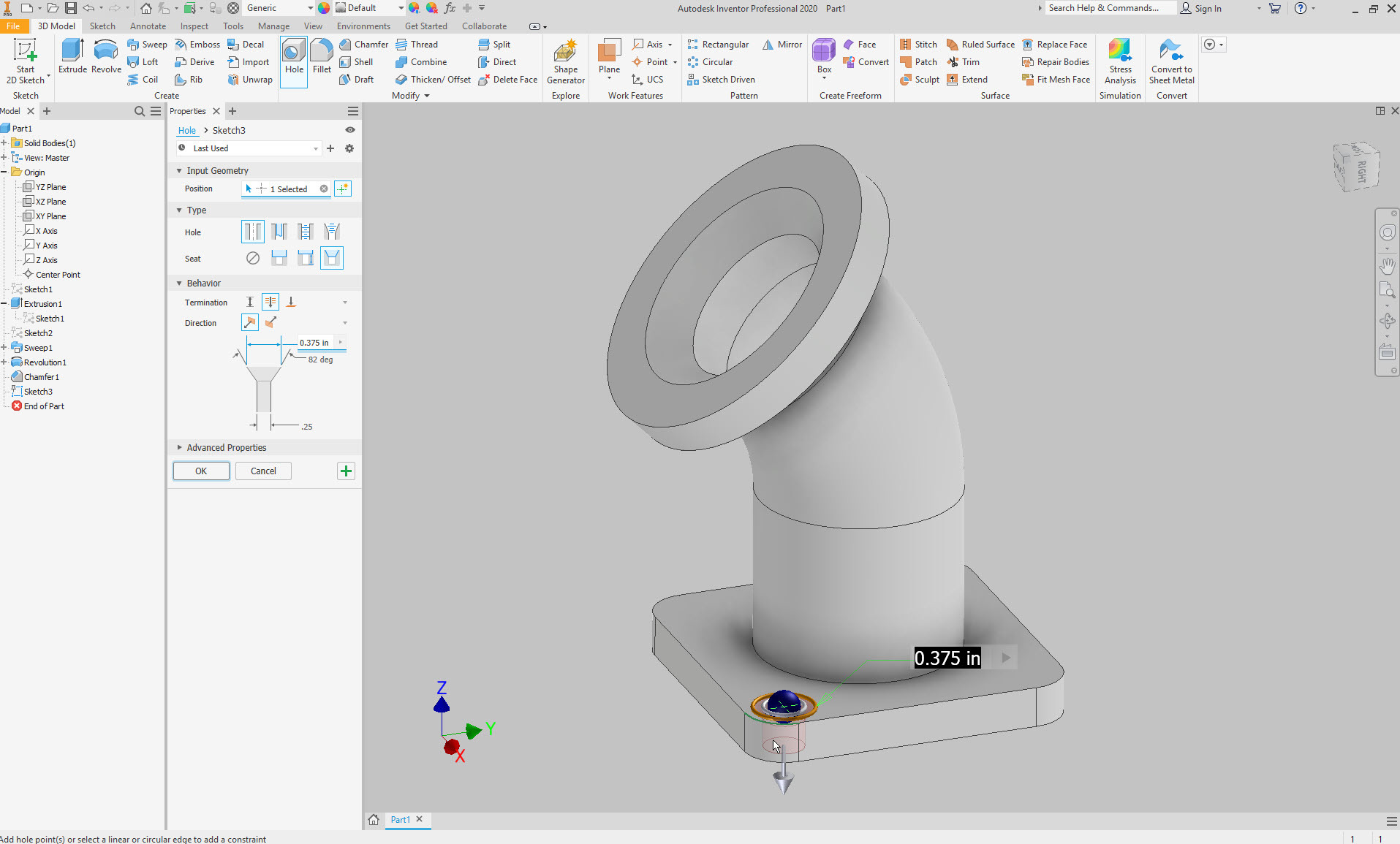

Create the Hole Feature As Shown

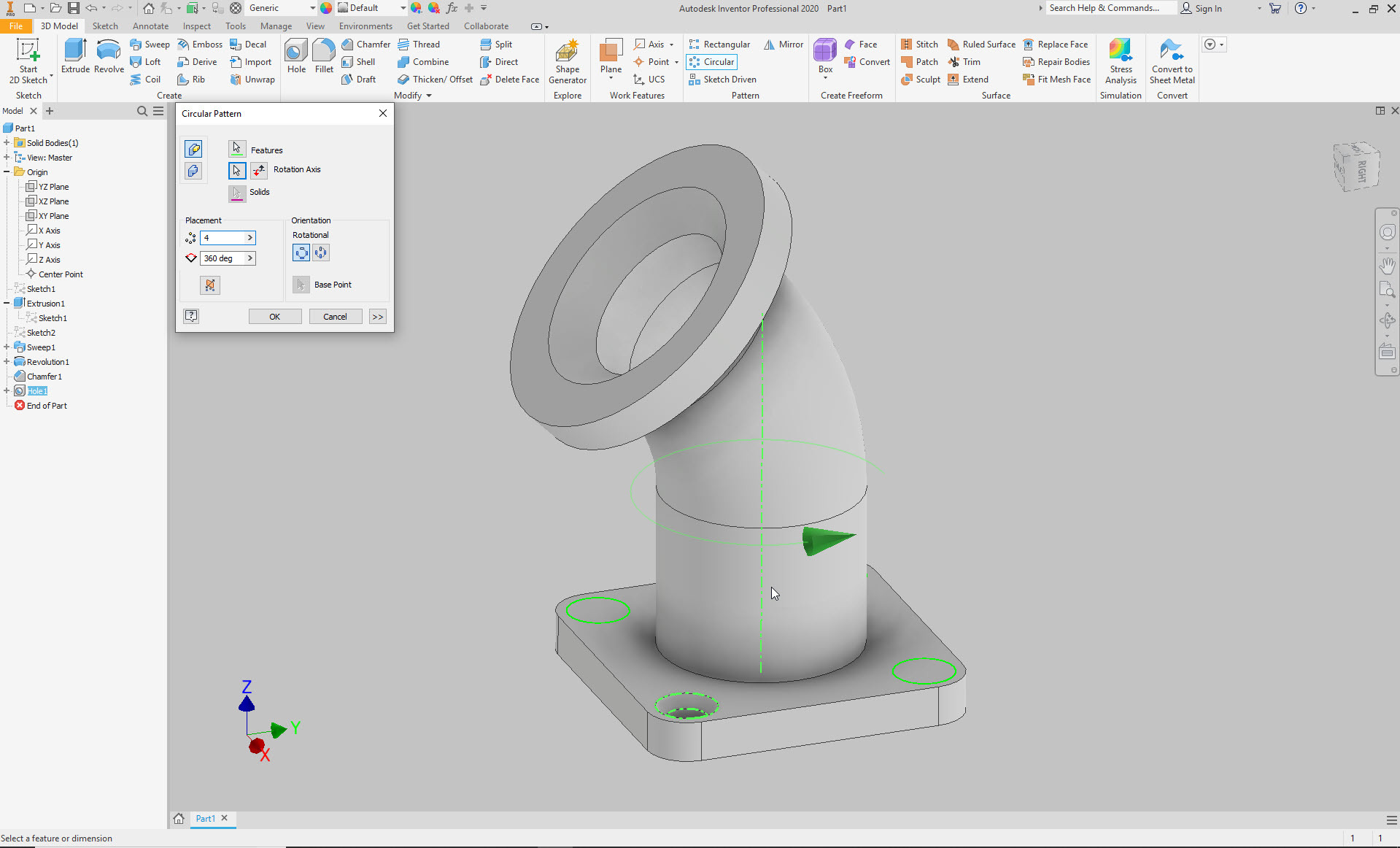

Create the Circular Pattern As Shown

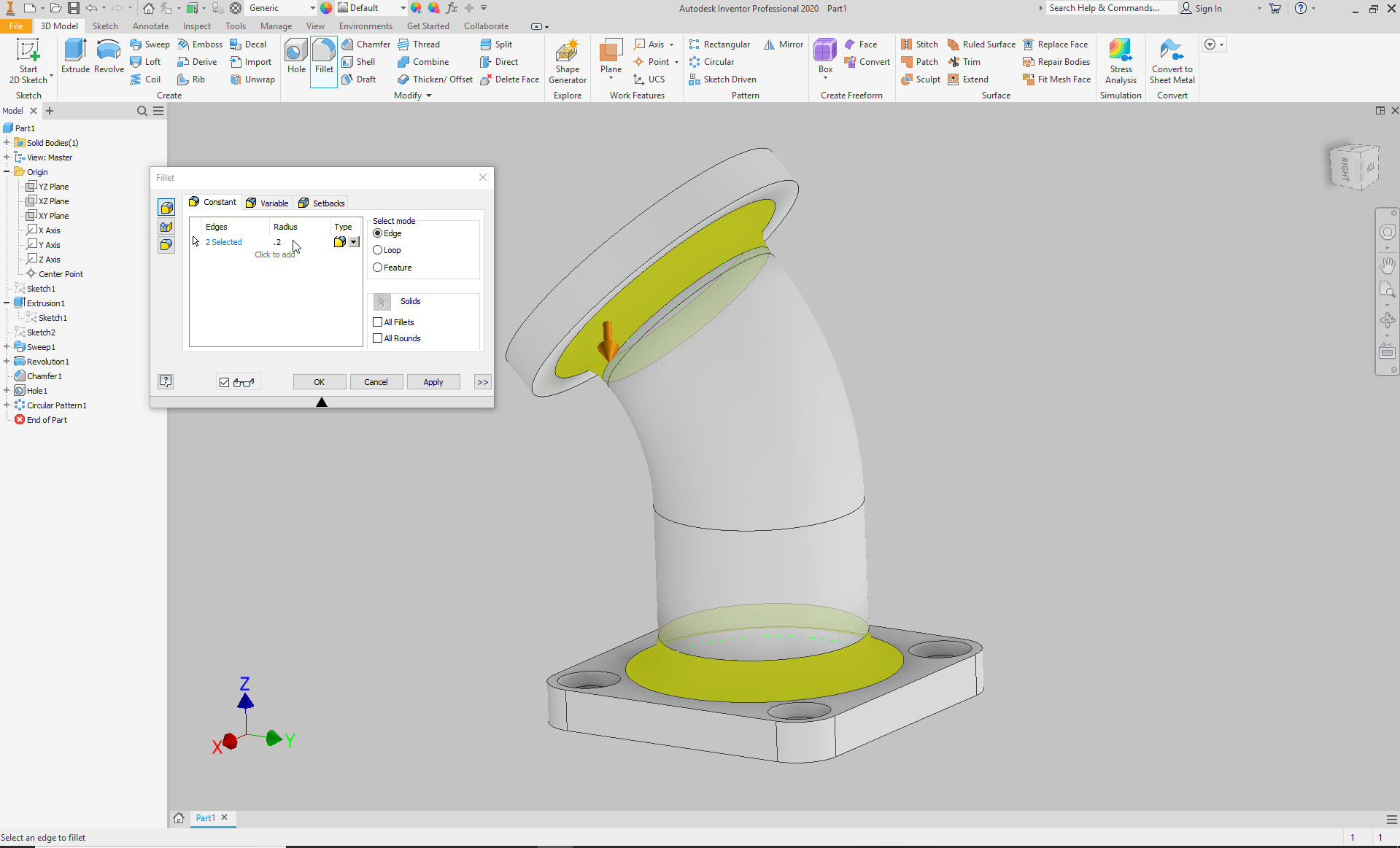

Apply the Fillet Features As Shown

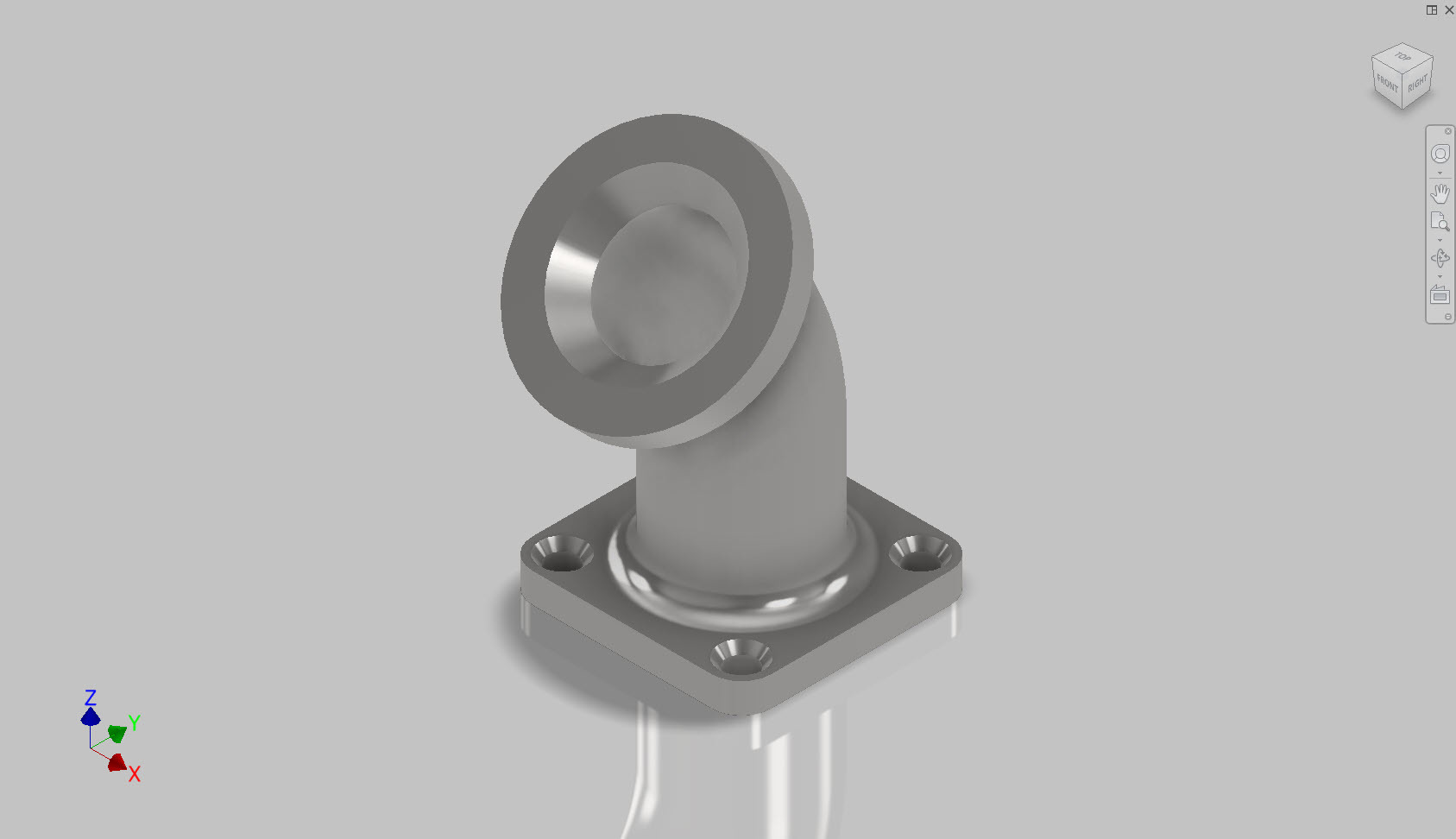

Change Appearances As Desired - You're Finished!
